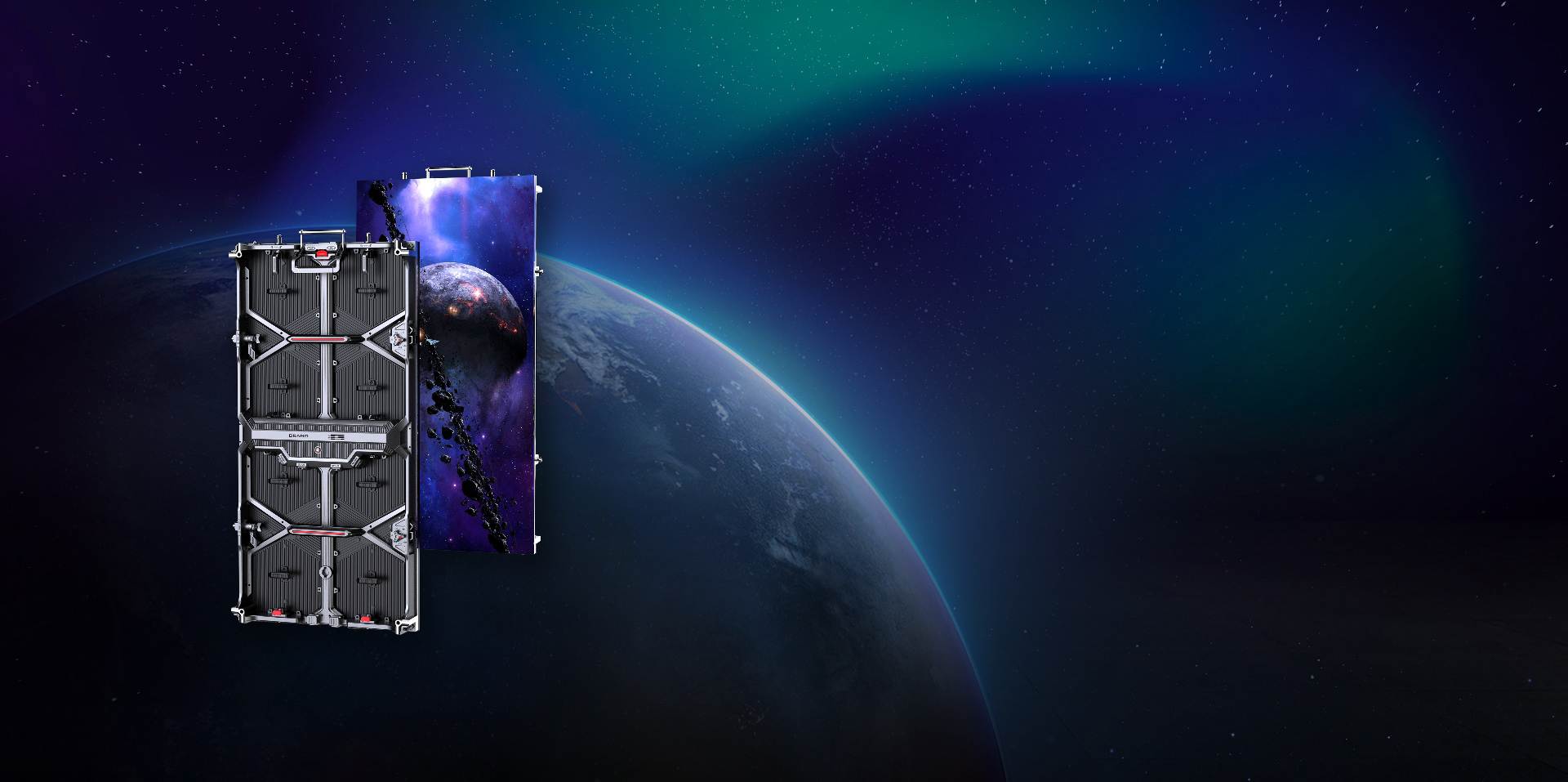

Rave Series Outdoor
Rave Series Outdoor
LED Panel with Cable Free Design
Multiple Pixel Pitch Options
Front & Rear Maintenance
High Flatness
LED Panel with Cable Free Design

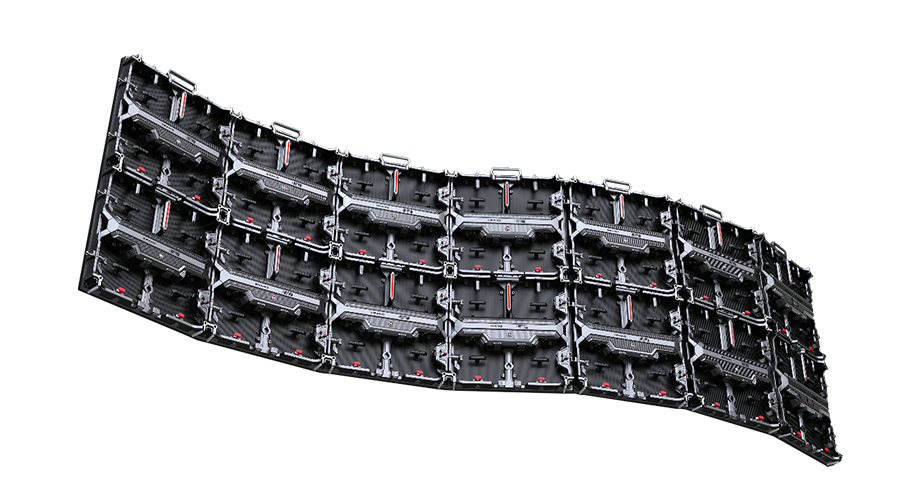

Perfect cabinets structure
Front / rear maintenance, modules and power supply, receiver cards could be removed from the front side and back side; Magnetic modules, seperate detachable back cover and corner protector.
Perfect cabinets structure

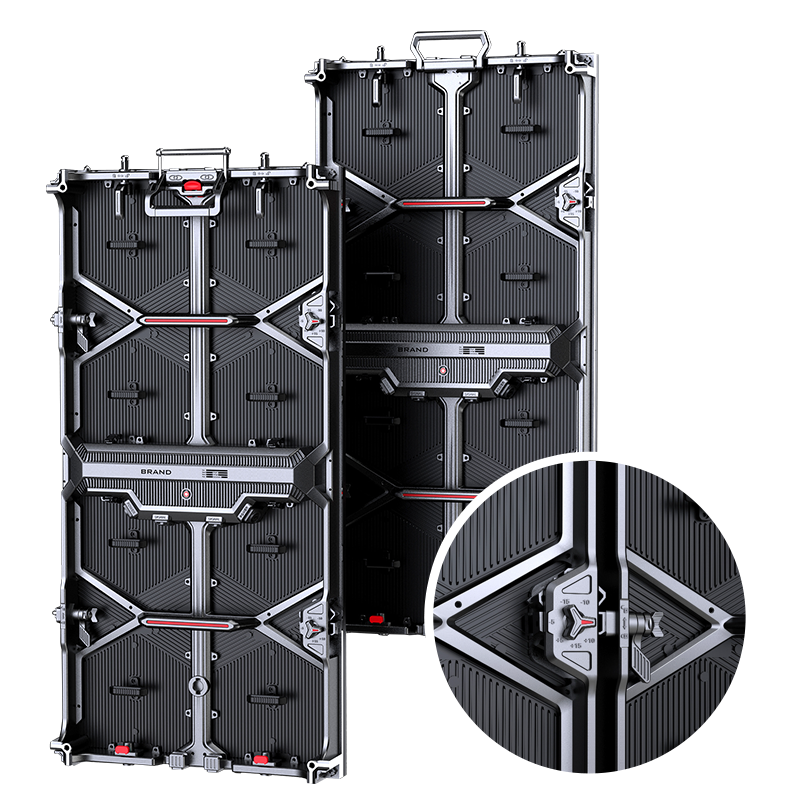

High precision curve lock adopt
high-precision curve lock design (-10 degree to 15 degree, rotation control, more accurate, easy to use, and quick adjust the degree of curve.
High precision curve lock adopt

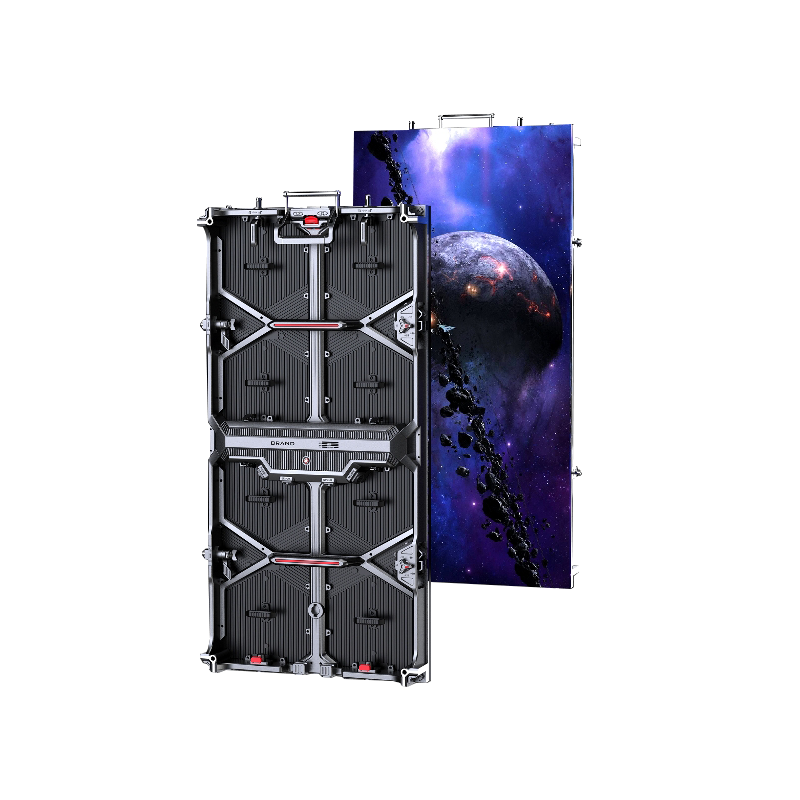

Slim and light die-casting aluminum
Hot: 2023 New Product
Usage: Outdoor & indoor both use
Higher level: Fabulous cabinet design
Locks angle: -10, -5,0, +5, +10, +15 degree
Intelligence: Magnetic module, rear/front maintenance
Slim and light die-casting aluminum
Specifications
Outdoor Rental series
Outdoor P2.604
Outdoor-P2.97
Outdoor-P3.91
Outdoor-P4.81
  • Product Number
  • Pixel pitch
  • LEDs
  • Size of Module
  • Resolution of Module
  • Size of Cabinet
  • Resolution of cabinet
  • Material of Cabinet
  • Weight of Cabinet
  • Brightness
  • Density
  • Best Viewing Angle
  • Pixel Configuration
  • Best Viewing Distance
  • Maximum Power Consumption
  • Average Power Consumption
  • Control Method
  • Gray Scale
  • Color Temperature
  • Contrast
  • Driving Device
  • Working Voltage
  • Working Temperature
  • MTBF
  • Frame Frequence
  • Refresh Frequence
  • IP Grade
  • Life Span
  • Data Transafer Method
  • Outdoor P2.604
  • 2.6 mm
  • SMD1415
  • 250mm×250mm
  • 96*96
  • 500mm*500mm*76mm
    500*1000mm*76mm
  • 192*192 / 192*384
  • Die-casting Aluminum
  • 7.5 Kg/cabinet&
    14Kg/cabinet
  • 4000cd/m²
  • 147456 dots/㎡
  • 160°/160°
  • 1R1G1B
  • > 2.6 M
  • <700W/㎡
  • < 250W/㎡
  • Asynchronization
  • 14-16 bits
  • 3000-10000k
  • ≥4000:1
  • Constant current
  • AC100-240V/110V±10%
  • -20℃~+60℃
  • >10,000 hours
  • 50-60HZ
  • ≥3840Hz
  • IP65
  • 100,000 hours
  • RJ45
  • Outdoor-P2.97
  • 2.97 mm
  • SMD1415
  • 250mm×250mm
  • 84×84
  • 500mm*500mm*76mm
    500*1000mm*76mm
  • 168*168 / 168*336
  • Die-casting Aluminum
  • 7.5 Kg/cabinet&
    14Kg/cabinet
  • 5000cd/m²
  • 112896 dots/㎡
  • 160°/160°
  • 1R1G1B
  • >2.9 M
  • <750W/㎡
  • <260W/㎡
  • Asynchronization
  • 14-16 bits
  • 3000-10000k
  • ≥4000:1
  • Constant current
  • AC100-240V/110V±10%
  • -20℃~+60℃
  • >10,000 hours
  • 50-60HZ
  • ≥3840Hz
  • IP65
  • 100,000 hours
  • RJ45
  • Outdoor-P3.91
  • 3.91 mm
  • SMD1921
  • 250mm×250mm
  • 64×64
  • 500mm*500mm*76mm
    500*1000mm*76mm
  • 128*128 / 128*256
  • Die-casting Aluminum
  • 7.5 Kg/cabinet&
    14Kg/cabinet
  • 5000cd/m²
  • 65536 dots/㎡
  • 160°/160°
  • 1R1G1B
  • >3.9 M
  • <600W/㎡
  • <200W/㎡
  • Asynchronization
  • 14-16 bits
  • 3000-10000k
  • ≥4000:1
  • Constant current
  • AC100-240V/110V±10%
  • -20℃~+60℃
  • >10,000 hours
  • 50-60HZ
  • ≥3840Hz
  • IP65
  • 100,000 hours
  • RJ45
  • Outdoor-P4.81
  • 4.81 mm
  • SMD1921
  • 250mm×250mm
  • 52×52
  • 500mm*500mm*76mm
    500*1000mm*76mm
  • 104*104 / 104*208
  • Die-casting Aluminum
  • 7.5 Kg/cabinet&
    14Kg/cabinet
  • 5000cd/m²
  • 43264 dots/㎡
  • 160°/160°
  • 1R1G1B
  • >4.8 M
  • <750W/㎡
  • <260W/㎡
  • Asynchronization
  • 14-16 bits
  • 3000-10000k
  • ≥4000:1
  • Constant current
  • AC100-240V/110V±10%
  • -20℃~+60℃
  • >10,000 hours
  • 50-60HZ
  • ≥3840Hz
  • IP65
  • 100,000 hours
  • RJ45
