DV Series
DV Series
LED Panel with Cable Free Design
Multiple Pixel Pitch Options
Front & Rear Maintenance
High Flatness
LED Panel with Cable Free Design

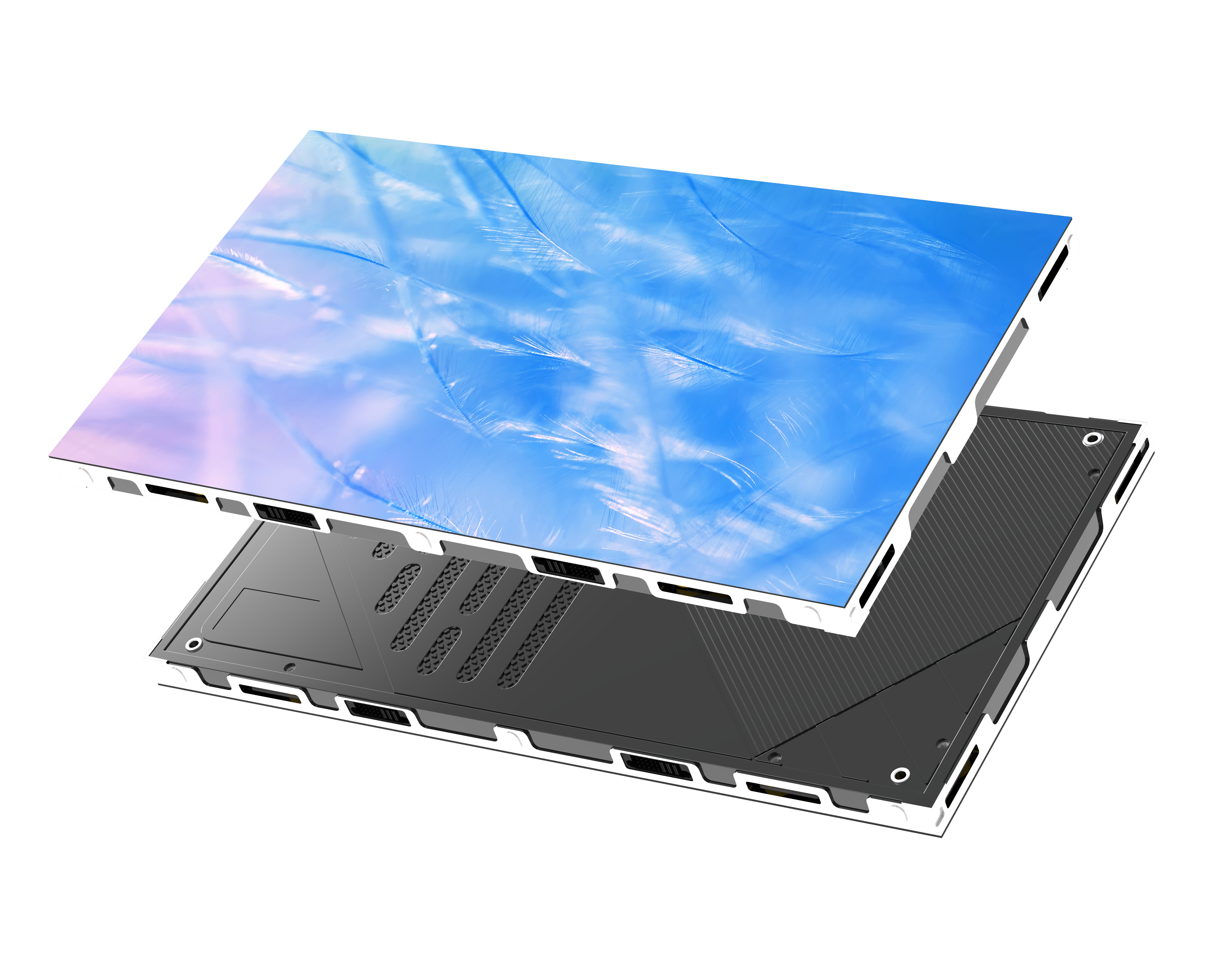

size
Each 600*337.5mm cabinet 4.5Kg, cableless design and ultra thin ,thinkness only 27.5mm, SMD/ GOB/ COB same cabinets,best for tender projects
size

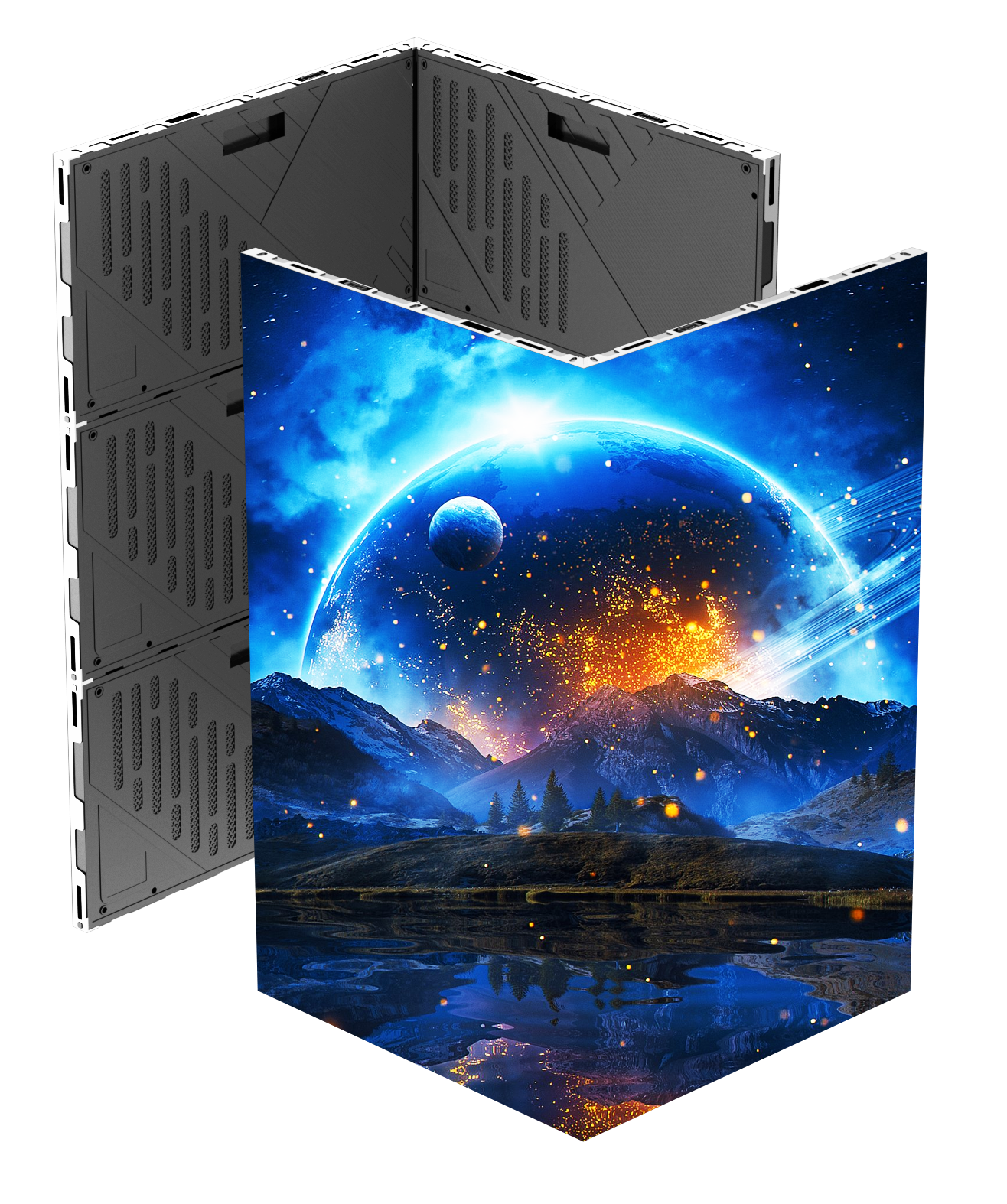

Installation mode
Wall mounted/embedded installation/lifting
Floor mounted/curved mounted
Cabinets seamless splicing to make 2K, 4K, 8 and 16 K ultra high definition LED screen


Installation mode

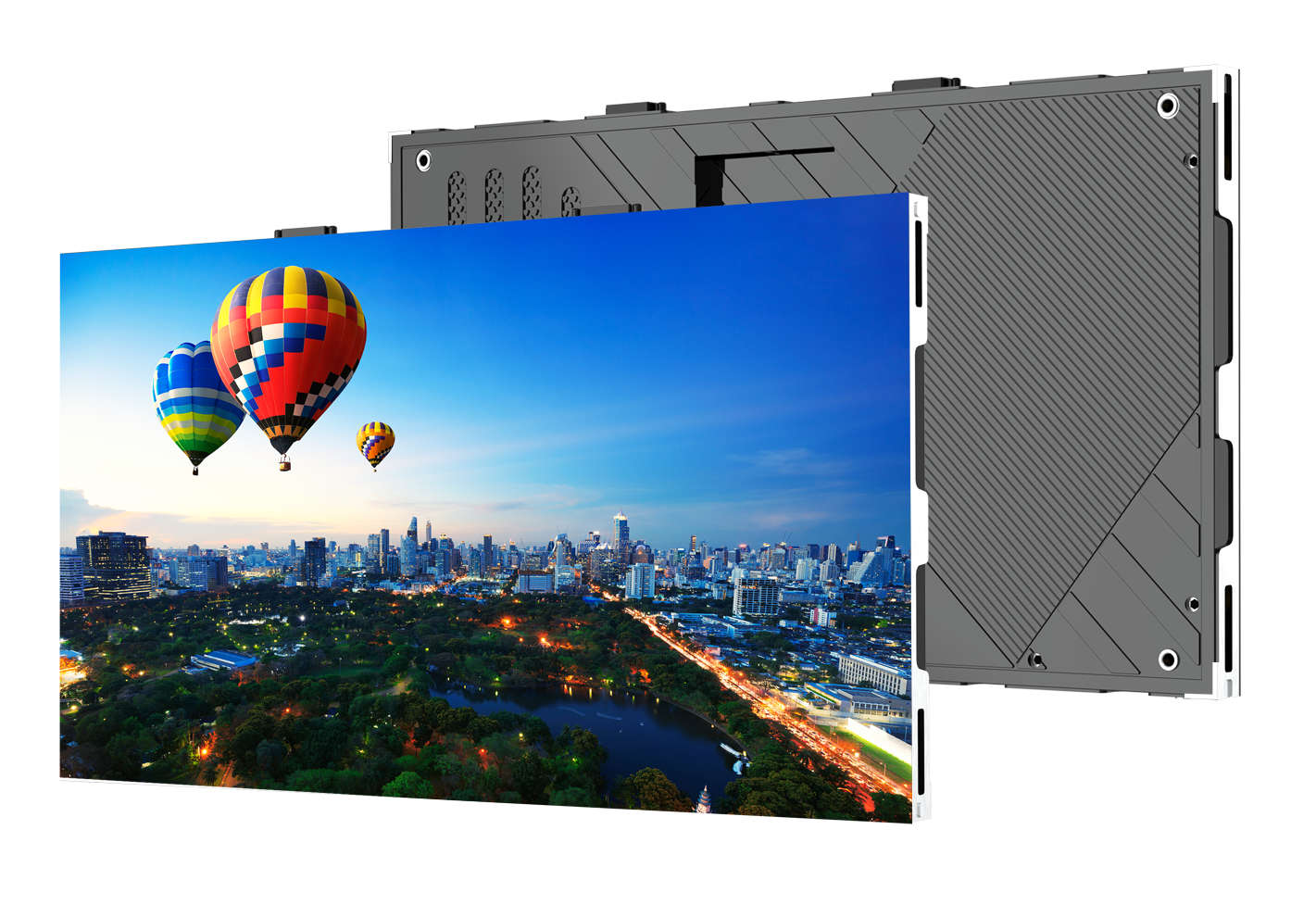

Small pitch direct view LED
High end die-casting aluminum cabinet
Front maintenance 100%
World’s thinnest,27.5mm
Small pitch direct view LED
Specifications
COB LED Screen series
P0.78
P0.93
P1.25
P1.56
P1.87
  • Item Number
  • Pixel Pitch
  • Pixel Density
  • LED Arrangement
  • Min Viewing Distance
  • Modules Size
  • Module Quatity
  • Module Resolution
  • Max Power Consumption
  • Ave Power Consumption
  • Panel Dimension
  • Cabinet Material
  • Panel Weight
  • Brightness Level
  • Calibration
  • Gray Scale (Bit)
  • Maintenance Type
  • Driving Mode
  • Control system
  • Frame
  • Lifetime
  • Contrast Ratio
  • Visual View Angle
  • Operating Power Source
  • Operating Temperature
  • Operating humidity
  • Refresh Rate
  • Protecting Rating
  • Operating system
  • Control Distance
  • Signal Input Source
  • P0.78
  • 0.78125mm
  • 1,638,400pixels/m²
  • Mini 4in1
  • 0.78 meter
  • 150*168.75mm
  • 4*2 pcs
  • 192x216pixels
  • 350W/m²
  • 100W/m²
  • 600*337.5mm*27.5mm
  • Die-casting aluminum
  • 4.5
  • 600nits
  • Yes
  • 14-16
  • Front
  • Constant current
  • Novastar
  • 50-60Hz
  • >100,000 hours
  • 10,000:1
  • 170°/170°
  • 110-220V/ AC 50-60Hz
  • -20~ +45
  • 10% ~ 90%
  • 3840Hz
  • IP30
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
  • P0.93
  • 0.9375mm
  • 1,137,778 pixels/m²
  • Mini 4in1
  • 0.93 meter
  • 300*168.75mm
  • 2*2 pcs
  • 320x180pixels
  • 350W/m²
  • 100W/m²
  • 600*337.5mm*27.5mm
  • Die-casting aluminum
  • 4.5
  • 600nits
  • Yes
  • 14-16
  • Front
  • Constant current
  • Novastar
  • 50-60Hz
  • >100,000 hours
  • 10,000:1
  • 170°/170°
  • 110-220V/ AC 50-60Hz
  • -20~ +45
  • 10% ~ 90%
  • 3840Hz
  • IP30
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
  • P1.25
  • 1.25mm
  • 640,000pixels/m²
  • SMD1010
  • 1.25 meter
  • 300*168.75mm
  • 2*2 pcs
  • 240x135pixels
  • 350W/m²
  • 100W/m²
  • 600*337.5mm*27.5mm
  • Die-casting aluminum
  • 4.5
  • 600nits
  • Yes
  • 14-16
  • Front
  • Constant current
  • Novastar
  • 50-60Hz
  • >100,000 hours
  • 10,000:1
  • 170°/170°
  • 110-220V/ AC 50-60Hz
  • -20~ +45
  • 10% ~ 90%
  • 3840Hz
  • IP30
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
  • P1.56
  • 1.5625mm
  • 409,600pixels/m²
  • SMD1010/1212
  • 1.56 meter
  • 300*168.75mm
  • 2*2 pcs
  • 192x108pixels
  • 350W/m²
  • 100W/m²
  • 600*337.5mm*27.5mm
  • Die-casting aluminum
  • 4.5
  • 600nits
  • Yes
  • 14-16
  • Front
  • Constant current
  • Novastar
  • 50-60Hz
  • >100,000 hours
  • 10,000:1
  • 170°/170°
  • 110-220V/ AC 50-60Hz
  • -20~ +45
  • 10% ~ 90%
  • 3840Hz
  • IP30
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
  • P1.87
  • 1.875mm
  • 284,444pixels/m²
  • SMD1515
  • 1.87 meter
  • 300*168.75mm
  • 2*2 pcs
  • 160x90pixels
  • 350W/m²
  • 100W/m²
  • 600*337.5mm*27.5mm
  • Die-casting aluminum
  • 4.5
  • 600nits
  • Yes
  • 14-16
  • Front
  • Constant current
  • Novastar
  • 50-60Hz
  • >100,000 hours
  • 10,000:1
  • 170°/170°
  • 110-220V/ AC 50-60Hz
  • -20~ +45
  • 10% ~ 90%
  • 3840Hz
  • IP30
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
