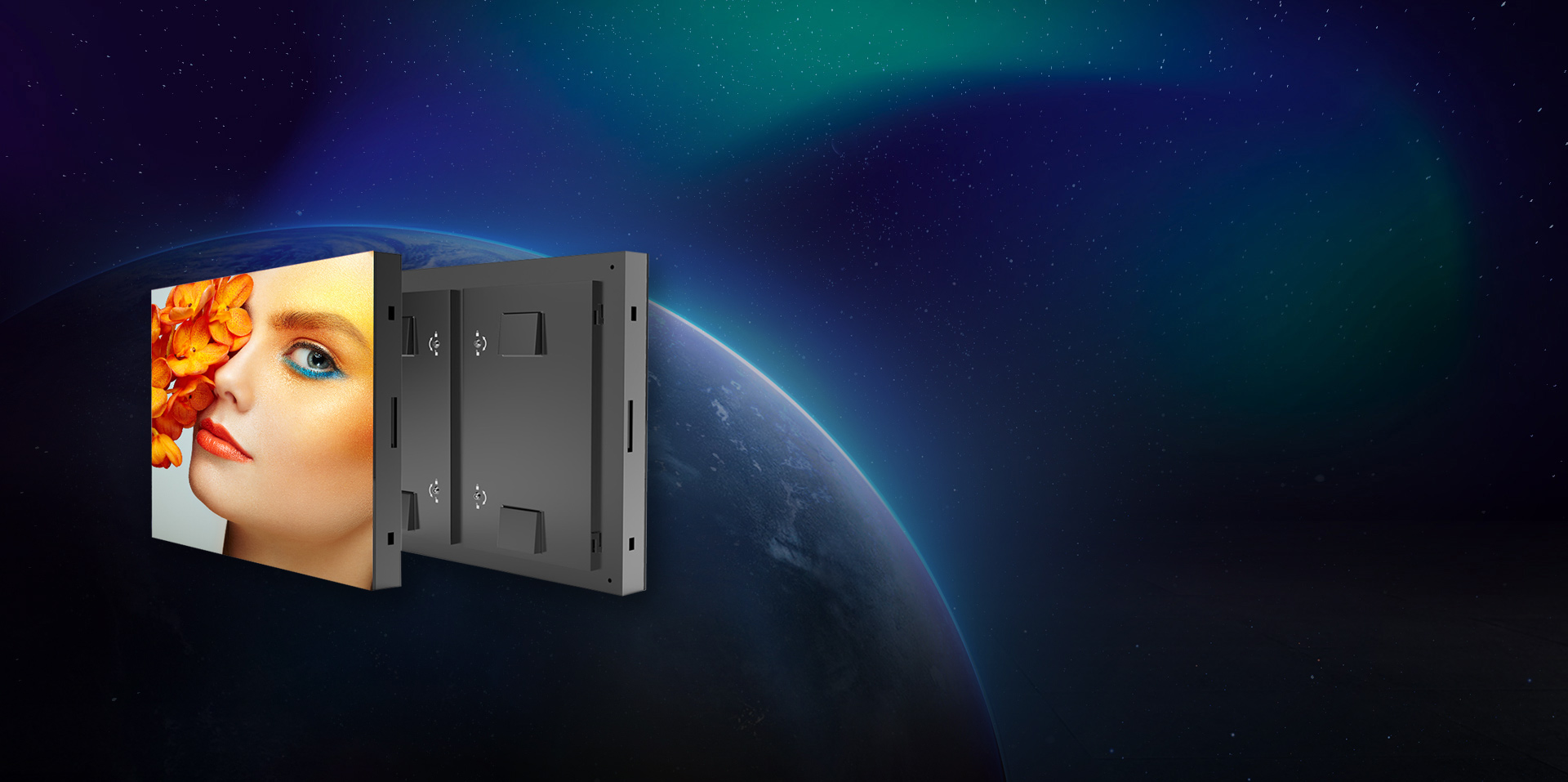

OD Series
OD Series
LED Panel with Cable Free Design
Multiple Pixel Pitch Options
Front & Rear Maintenance
High Flatness
LED Panel with Cable Free Design

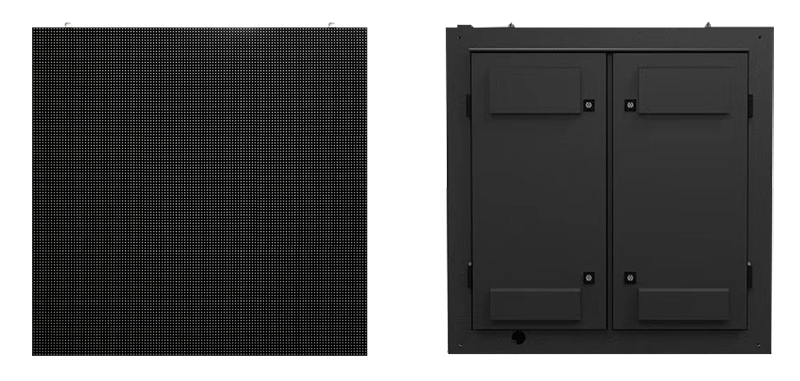

Classic module design
High level quality, Natural 16 bit color effect.
Classic module design
Outdoor environment
High ingress protection durable for all kinds of climate and environment
Outdoor environment

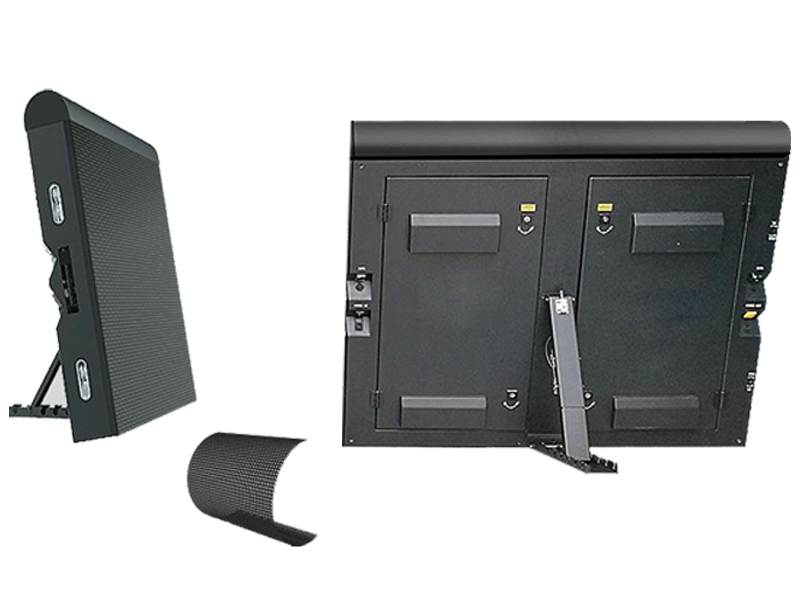

Popular 3D Visual
make the led screen to be a building art
Popular 3D Visual

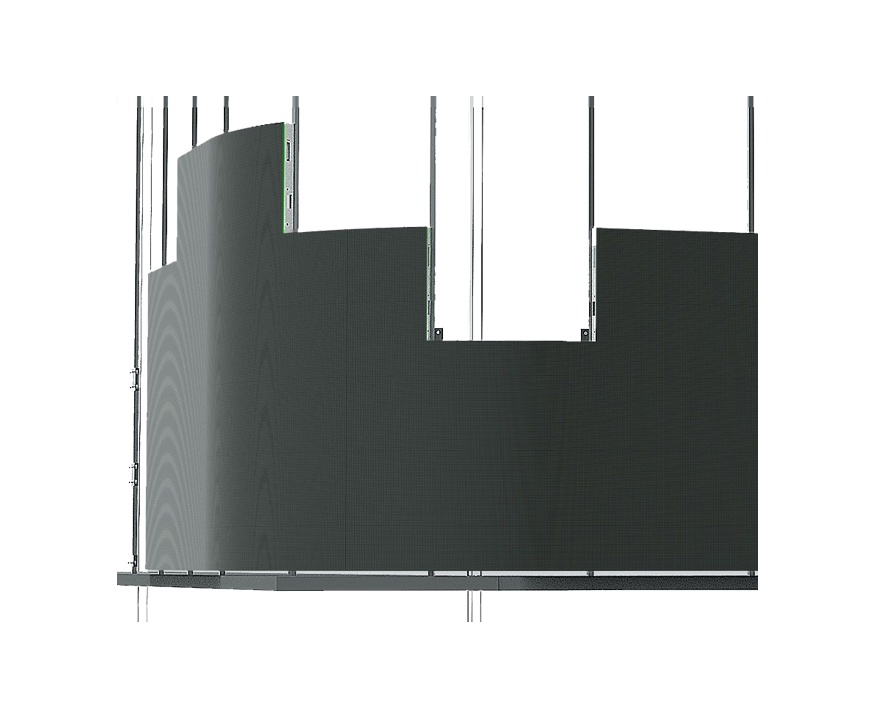

Hot: 1,000,000+cabinets manufactured
Best quality: stable and seamless
Best price outdoor P3-P16
Front / Rear Maintenance
Delivery time: 10-15 days
Hot: 1,000,000+cabinets manufactured
Specifications
Outdoor Fixed series
OD 4
OD 5.3
OD 6.6
OD 8
OD 10
  • Model
  • Pixel Pitch(mm)
  • Pixel Density(dot/m²)
  • LED Type
  • Module Size(mm*mm)
  • Module Resolution(dot*dot)
  • Cabinet Size(mm*mm)
  • Cabinet Resolution(dot*dot)
  • Cabinet Material
  • Cabinet Weight(kg)
  • Brightness(cd/ m²)
  • Refresh Rate(hz)
  • Gray Scale(bit)
  • Viewing Angle(deg)
  • Max Power Consumption(w/ m²)
  • Ave Power Consumption(w/ m²)
  • Input Voltage(v)
  • Working Temperature(℃)
  • Working Temperature(℃)
  • Ingress Protection
  • Working Environment
  • Life Span(H)
  • Certificate
  • Operating system
  • Control Distance
  • Signal Input Source
  • OD 4
  • P4
  • 40,000
  • SMD1921
  • 320*320
  • 80*80
  • 960W*960H*120mm
  • 240*240
  • Steel / Aluminum
  • 50 KG
  • 6500-8500
  • 1920~3840
  • 14-16
  • H160/V140
  • 650
  • 210
  • 100~240
  • -20~+60
  • 10%~90%
  • IP65
  • Outdoor
  • 100,000
  • CE/ETL/ FCC
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
  • OD 5.3
  • P5.3
  • 35,200
  • SMD1921
  • 320*320
  • 60*60
  • 960W*960H*120mm
  • 180*180
  • Steel / Aluminum
  • 50 KG
  • 6500-8500
  • 1920~3840
  • 14-16
  • H160/V140
  • 650
  • 210
  • 100~240
  • -20~+60
  • 10%~90%
  • IP65
  • Outdoor
  • 100,000
  • CE/ETL/ FCC
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
  • OD 6.6
  • P6.6
  • 22,476
  • SMD 3535
  • 320*320
  • 48*48
  • 960W*960H*120mm
  • 144*144
  • Steel / Aluminum
  • 50 KG
  • 6500-8500
  • 1920~3840
  • 14-16
  • H160/V140
  • 650
  • 210
  • 100~240
  • -20~+60
  • 10%~90%
  • IP65
  • Outdoor
  • 100,000
  • CE/ETL/ FCC
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
  • OD 8
  • P8
  • 15,625
  • SMD 3535
  • 320*320
  • 40*40
  • 960W*960H*120mm
  • 120*120
  • Steel / Aluminum
  • 50 KG
  • 6500-8500
  • 1920~3840
  • 14-16
  • H160/V140
  • 650
  • 210
  • 100~240
  • -20~+60
  • 10%~90%
  • IP65
  • Outdoor
  • 100,000
  • CE/ETL/ FCC
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
  • OD 10
  • P10
  • 10,000
  • SMD 3535
  • 320*320
  • 32*32
  • 960W*960H*120mm
  • 96*96
  • Steel / Aluminum
  • 50 KG
  • 6500-8500
  • 1920~3840
  • 14-16
  • H160/V140
  • 650
  • 210
  • 100~240
  • -20~+60
  • 10%~90%
  • IP65
  • Outdoor
  • 100,000
  • CE/ETL/ FCC
  • Windows
  • <100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
  • S-video,VGA,DVI,HDMI,SDI,DP
