OB Series - Outdoor LED Displays - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

High Quality

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

High Quality

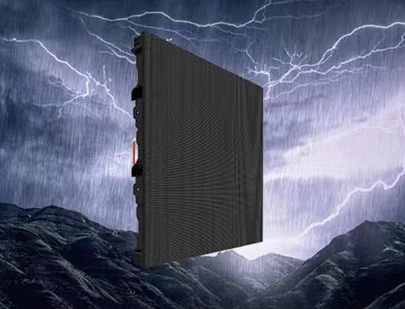

High protection

Military grade protection technology,

can adapt to outdoor harsh environment

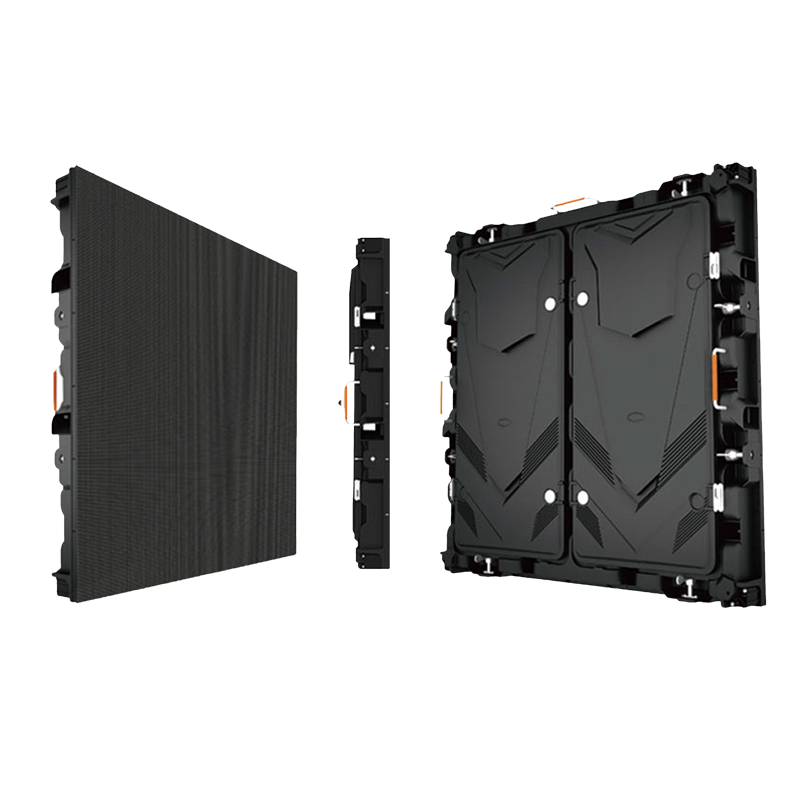

Size

Cabinet size 960*960mm for the convenience

of calculation and steel structure

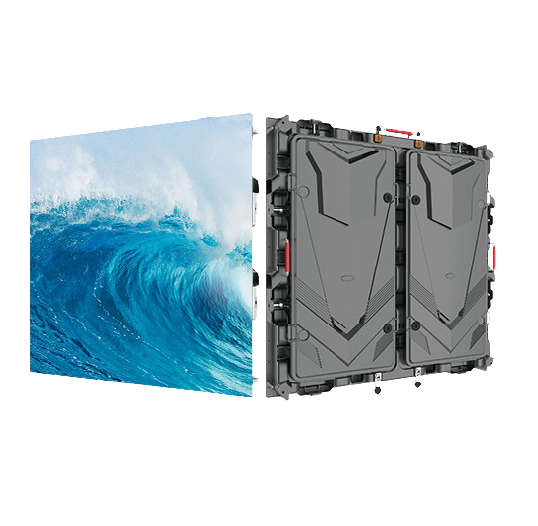

Hot: 1,000,000+cabinets manufactured

Nationstar 7000nits brightness

Die-casting magnesium alloy cabinet

28KG/ 960*960mm

Specifications

Outdoor LED Displays series

OB 5

OB 6.67

OB 8

OB 10

Model
Pixel Pitch(mm)
Pixel Density(dot/m²)
LED Type
Module Size(mm*mm)
Module Resolution(dot*dot)
Cabinet Size(mm*mm)
Cabinet Resolution(dot*dot)
Cabinet Material
Cabinet Weight(kg)
Brightness(cd/m²)
Refresh Rate(hz)
Gray Scale(bit)
Viewing Angle(deg)
Max Power Consumption(w/m²)
Ave Power Consumption(w/m²)
Input Voltage(v)
Working Temperature(℃)
Operation Humidity(rh)
Ingress Protection
Working Environment
Life Span(H)
Certificate
Operating system
Control Distance
Signal Input Source

OB 5
P5
40,000
SMD1921
320*160
64*32
960*960* 89mm
192*192
Magnesium Alloy
26
6000～7000
1920～3840
14-16
H160/V140
650
210
100～240
-20～+60
10%～90%
IP65
Outdoor
100,000
CE/ETL/FCC
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

OB 6.67
P 6.67
22,476
SMD 3535
320*160
48*24
960*960* 89mm
144*144
Magnesium Alloy
26
6000～10000
1920～3840
14-16
H160/V140
650
210
100～240
-20～+60
10%～90%
IP65
Outdoor
100,000
CE/ETL/FCC
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

OB 8
P8
15,625
SMD 3535
320*160
40*20
960*960* 89mm
120*120
Magnesium Alloy
26
6000～10000
1920～3840
14-16
H160/V140
650
210
100～240
-20～+60
10%～90%
IP65
Outdoor
100,000
CE/ETL/FCC
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP

OB 10
P10
10,000
SMD 3535
320*160
32*16
960*960* 89mm
96*96
Magnesium Alloy
26
6000～10000
1920～3840
14-16
H160/V140
650
210
100～240
-20～+60
10%～90%
IP65
Outdoor
100,000
CE/ETL/FCC
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
S-video,VGA,DVI,HDMI,SDI,DP
