OE Series - OE P1.9/P2.6/P2.9 - Outdoor LED Displays - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

High Quality

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

High Quality

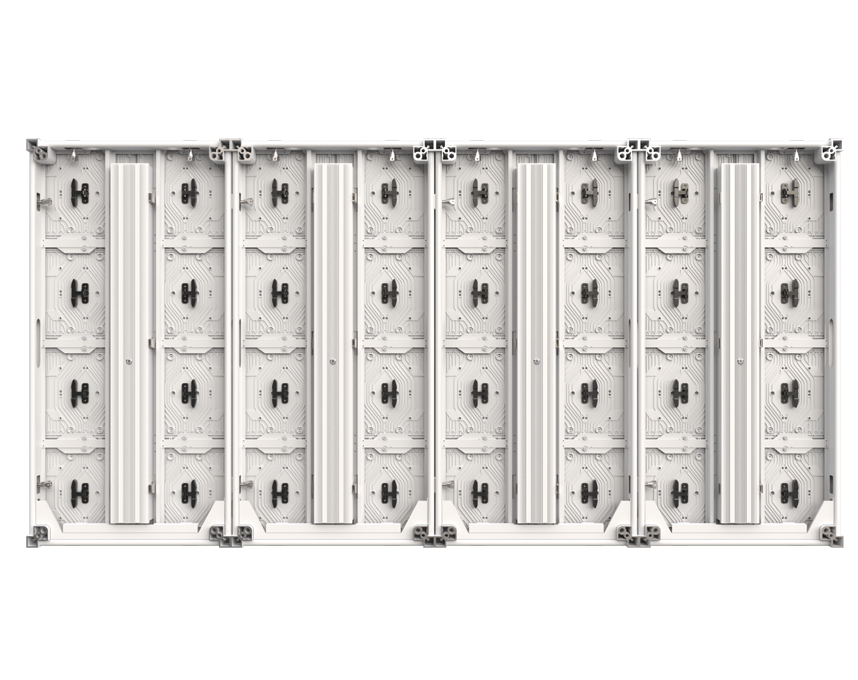

With Common Cathod Technology for energy saving up to 30%

and white color aluminum frame can reflect the sunlight

to reduce the heat than black cabinets

With Common Cathod Technology for energy saving up to 30%

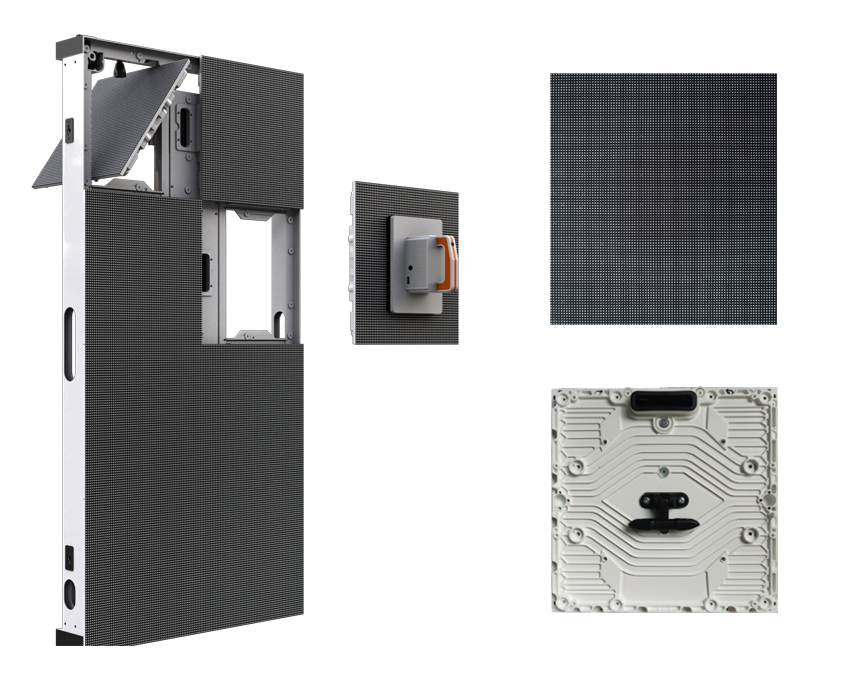

Support front /rear maintenace

slim and thin cabinets to save transportation and installation cost, the

smallest pixel pitch is P1.9, highest definition with outdoor waterproof IP66

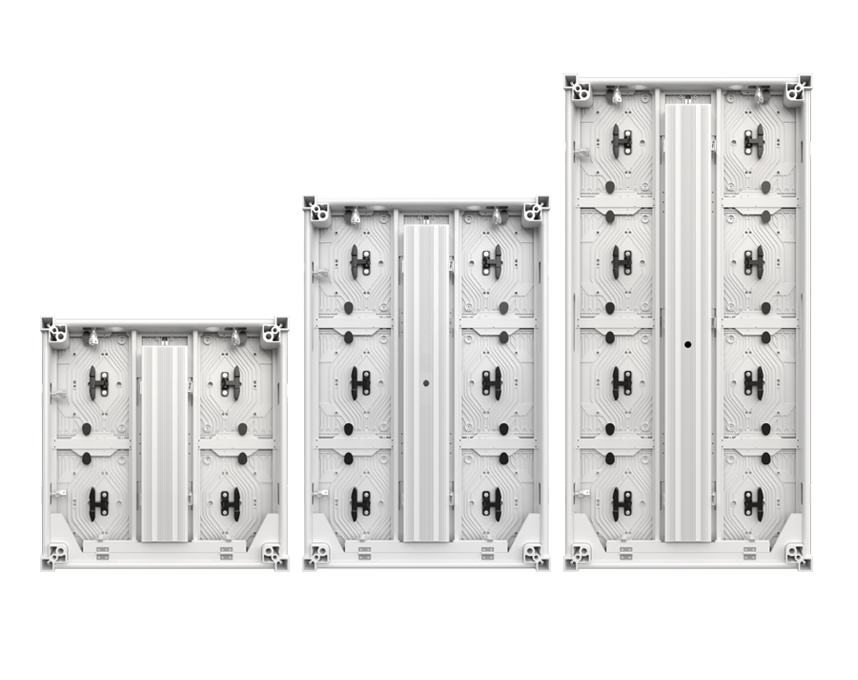

Different cabinet size

500*500mm / 500*750mm/ 500*1000mm, available for

mixed splicing to meet kinds of projects demands

500*500*85mm / 8kg

500*750*85mm / 12kg

500*1000*85mm / 16kg

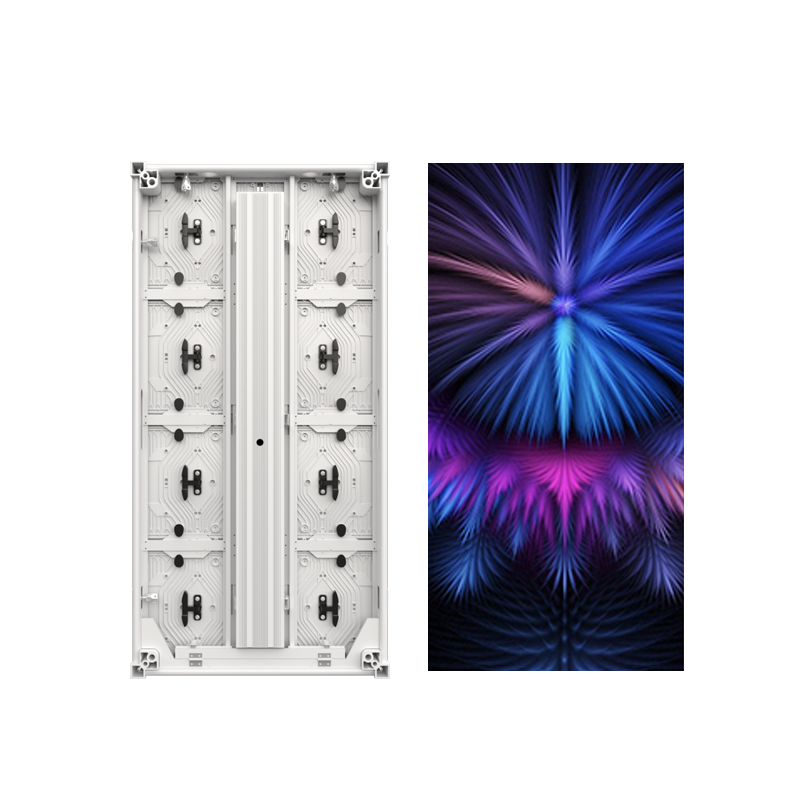

Front/Rear maintenance

Model：P1.9/P2.6/P2.9/P3.9/P4.8 available

Multi-type cabinet size 500*500/500*750/500*1000mm

IP66

Energy Saving (Common Cathode Technology)

Specifications

OE P1.9/P2.6/P2.9 series

P1.9

P2.6

P2.9

P3.9

P4.8

Item Number
Pixel pitch
Pixel Density
LED Arrangement
Min Viewing Distance
Modules Size
Module Quatity
Module Resolution
Cabinet Resolution
Max Power Consumption
Ave Power Consumption
Brightness Level
Scan method
Panel Dimension
Cabinet Material
Panel Weight
Calibration
Gray Scale (Bit)
Color termperature
Maintenance Type
Driving Mode
Control system
Frame
Lifetime
Contrast Ratio
Visual View Angle
Operating Power Source
Operating Temperature
Operating humidity
Refresh Rate
Protecting Rating
Operating system
Signal Input Source
Control Distance

P1.9
1.95 mm
262,144 pixels/㎡
GOB
1.9 meter
250*250 mm
2 *4 pcs
128 x 128 pixels
256*512 pixels
500W/㎡
168W/㎡
3500 nit
1/32
500*500mm/ 500*750mm
500*1000 mm* 85 mm
Aluminum
16 KG
Yes
14-16
6000-9000 K
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
6,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP66
Windows
S-video,VGA,DVI,HDMI,SDI,DP
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.

P2.6
2.604 mm
147,456 pixels/㎡
SMD1415
2.6 meter
250*250 mm
2*4 pcs
96 x 96 pixels
192*384 pixels
500W/㎡
168W/㎡
4500 nit
1/24
500*500mm/ 500*750mm
500*1000 mm* 85 mm
Aluminum
16 KG
Yes
14-16
6000-9000 K
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
6,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP66
Windows
S-video,VGA,DVI,HDMI,SDI,DP
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.

P2.9
2.97 mm
112,896 pixels/㎡
SMD1415
2.9 meter
250*250 mm
2*4 pcs
84 x 84 pixels
168*336 pixels
500W/㎡
168W/㎡
4500 nit
1/21
500*500mm/ 500*750mm
500*1000 mm* 85 mm
Aluminum
16 KG
Yes
14-16
6000-9000 K
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
6,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP66
Windows
S-video,VGA,DVI,HDMI,SDI,DP
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.

P3.9
3.91 mm
65,536 pixels/㎡
SMD1921
3.9 meter
250*250 mm
2*4 pcs
64x 64 pixels
128*256 pixels
650W/㎡
218W/㎡
5500 nit
1/8
500*500mm/ 500*750mm
500*1000 mm* 85 mm
Aluminum
16 KG
Yes
14-16
6000-9000 K
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
6,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP66
Windows
S-video,VGA,DVI,HDMI,SDI,DP
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.

P4.8
4.81 mm
43,264 pixels/㎡
SMD1921
4.8 meter
250*250 mm
2*4 pcs
52 x 52 pixels
104*208 pixels
500W/㎡
168W/㎡
5000 nit
1/13
500*500mm/ 500*750mm
500*1000 mm* 85 mm
Aluminum
16 KG
Yes
14-16
6000-9000 K
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
6,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55 degree
10％～ 90％
3840Hz
IP66
Windows
S-video,VGA,DVI,HDMI,SDI,DP
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
