Outdoor LED display OH Series - OH P3.9/P4.8 - Outdoor LED Displays - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

High Quality

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

High Quality

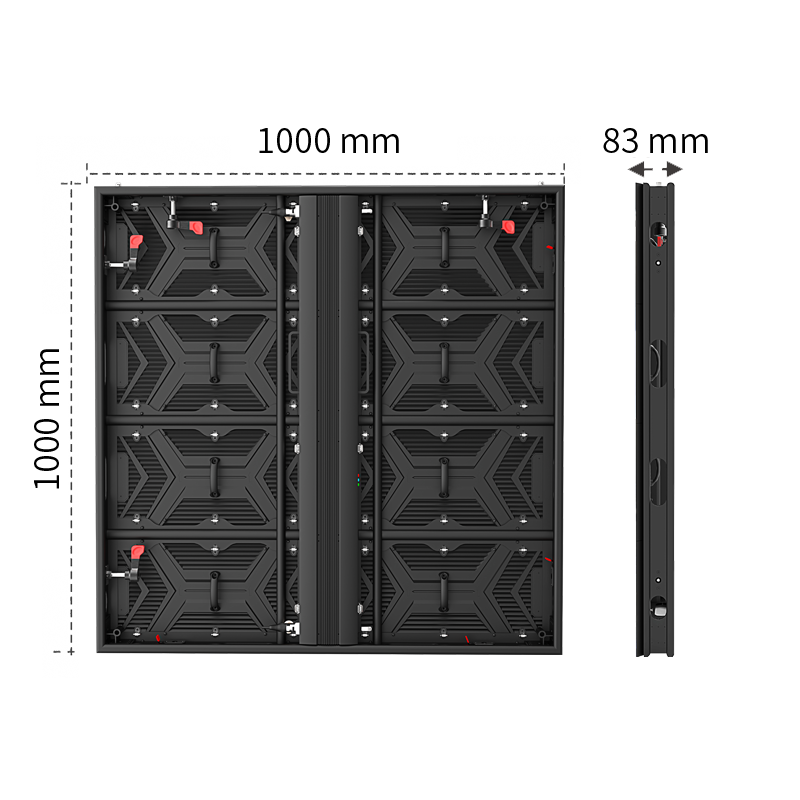

Cabinet size

P2.9/P3.9/P4.8/P6.25/P7.8/P10

Cabinet size 1000*1000/1000*750/1000*500mm

Stable, reliable performance, energy saving

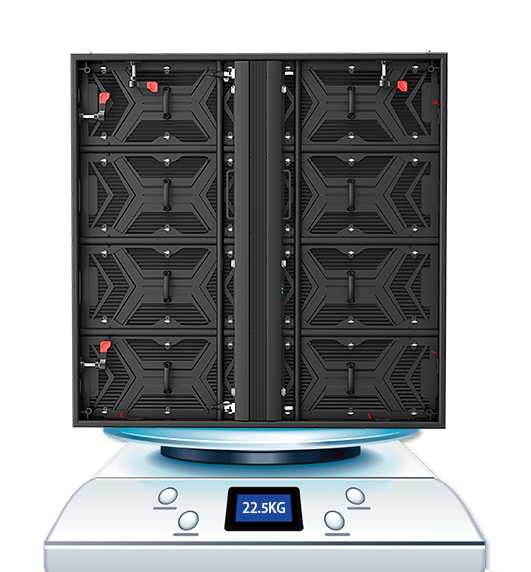

Aluminum cabinet

Ultra high brightness Light weight 22.5KG/sqm

Outdoor fixed installaton applications:

a,Sports stadium/airport

b,Advertisement media company stand

c,Shopping mall/ retails/stations

d,Public/government/enterprises

e,School/education system

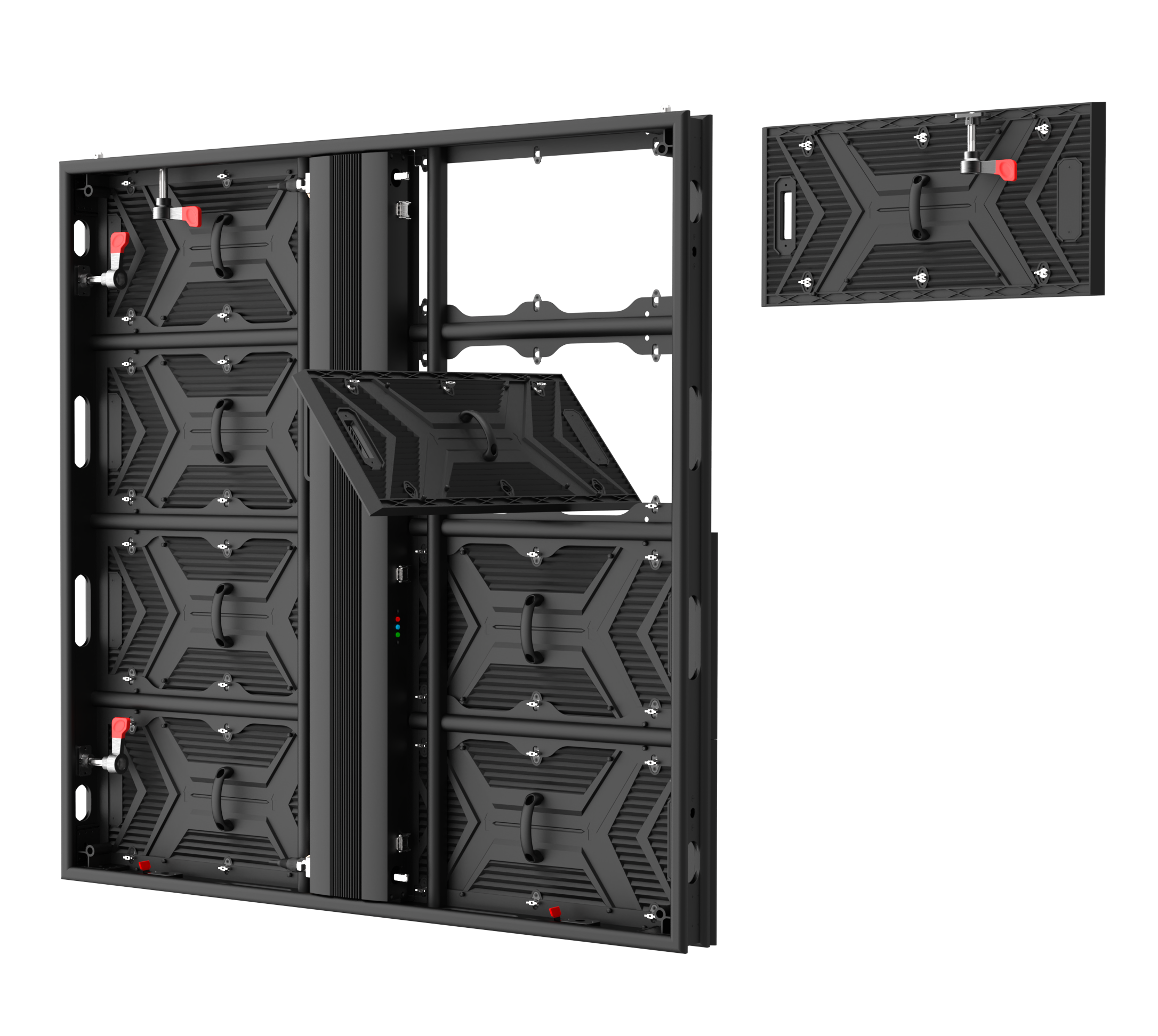

Full-front and Rear maintenance

With a lower temperature inside the panel,electricals

components can work more stably to provide better video quality

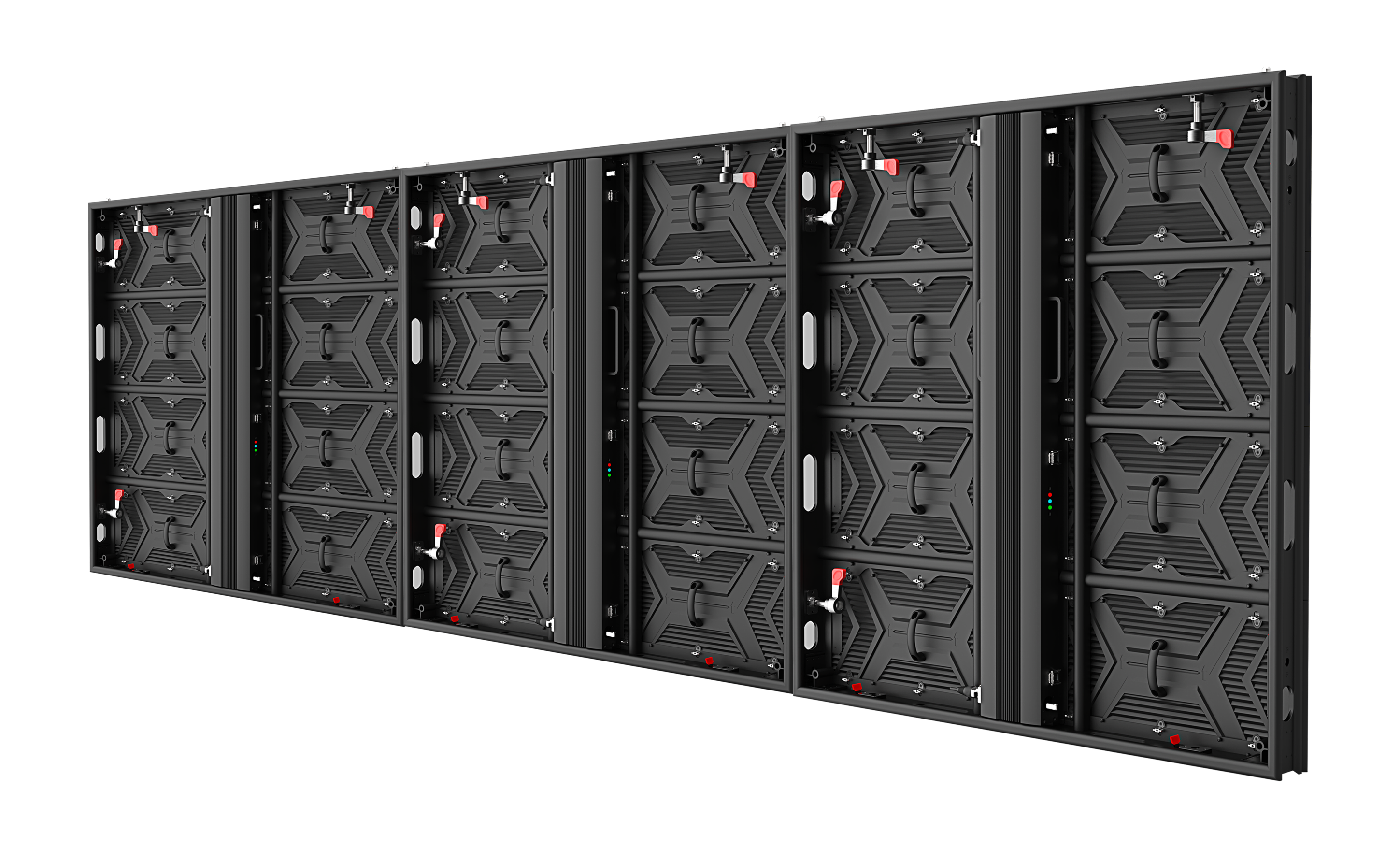

Seamless and fast installation

Matte corrugation module mask achieves ultra-high contrast

IP65 Waterproof for both front and back side

Hard connection supports full front access

Specifications

OH P3.9/P4.8 series

P3.9

P4.8

P7.8

P10

Item Number
Pixel Pitch
Pixel Density
LED Arrangement
Min Viewing Distance
Modules Size
Module Quatity
Module Resolution
Max Power Consumption
Ave Power Consumption
Panel Dimension
Cabinet Material
Panel Weight
Brightness Level
Calibration
Gray Scale (Bit)
Maintenance Type
Driving Mode
Control system
Frame
Lifetime
Contrast Ratio
Visual View Angle
Operating Power Source
Operating Temperature
Operating humidity
Refresh Rate
Protecting Rating
Operating system
Control Distance
Signal Input Source

P3.9
3.91 mm
65,536 pixels/㎡
SMD 1921
3 meter
500*250 mm
2 *4 pcs
128 x 64 pixels
650W/㎡
200W/㎡
1000*1000 mm* 83 mm
Aluminum
22.5 KG
6000-6500 nits
Yes
14-16
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
Hard connection supports full front access
S-video,VGA,DVI,HDMI,SDI,DP

P4.8
4.81 mm
43,264 pixels/㎡
SMD 1921
4 meter
500*250 mm
2*4 pcs
104 x 52 pixels
650W/㎡
200W/㎡
1000*1000 mm* 83 mm
Aluminum
22.5 KG
6000-6500 nits
Yes
14-16
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
Hard connection supports full front access
S-video,VGA,DVI,HDMI,SDI,DP

P6
6.25 mm
25,600 pixels/㎡
SMD 2727
6 meter
500*250 mm
2*4 pcs
80 x 40 pixels
650W/㎡
200W/㎡
1000*1000 mm* 83 mm
Aluminum
22.5 KG
6000-6500 nits
Yes
14-16
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
Hard connection supports full front access
S-video,VGA,DVI,HDMI,SDI,DP

P7.8
7.8125 mm
16,384 pixels/㎡
SMD 2727
8 meter
500*250 mm
2*4 pcs
64 x 32 pixels
650W/㎡
200W/㎡
1000*1000 mm* 83 mm
Aluminum
22.5 KG
6000-6500 nits
Yes
14-16
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
Hard connection supports full front access
S-video,VGA,DVI,HDMI,SDI,DP

P10
10.4 mm
9,216 pixels/㎡
SMD 2727
10 meter
500*250 mm
2*4 pcs
48 x24 pixels
650W/㎡
200W/㎡
1000*1000 mm* 83 mm
Aluminum
22.5 KG
6000-6500 nits
Yes
14-16
Front / Rear
Constant current
Novastar
50-60Hz
>100,000 hours
5,000:1
160°/140°
110-220V/ AC 50-60Hz
-20~ +55
10％～ 90％
3840Hz
IP65
Windows
<100 meters: UTP CAT.6 network cable (without relay).Or optical fiber transmission for over 500M-10,000M.
Hard connection supports full front access
S-video,VGA,DVI,HDMI,SDI,DP
