High transparence: Max 60%
Flexible Brightness: 1000-5000nits
Best quality: stable and seamless
Delivery time: 5-15 days

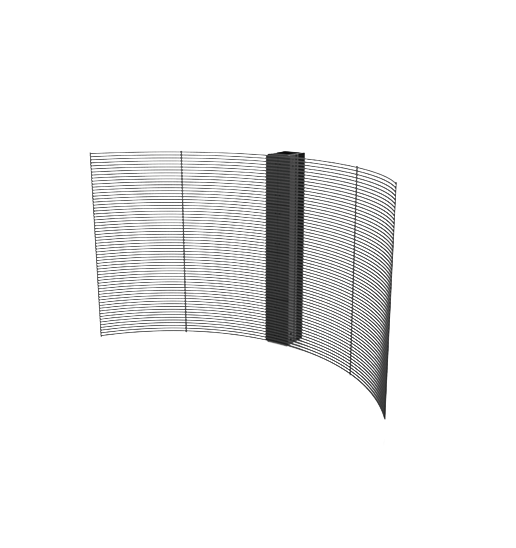

Support curved display design
Whatever hanging or floor stand installation, it’s easy and quick to install

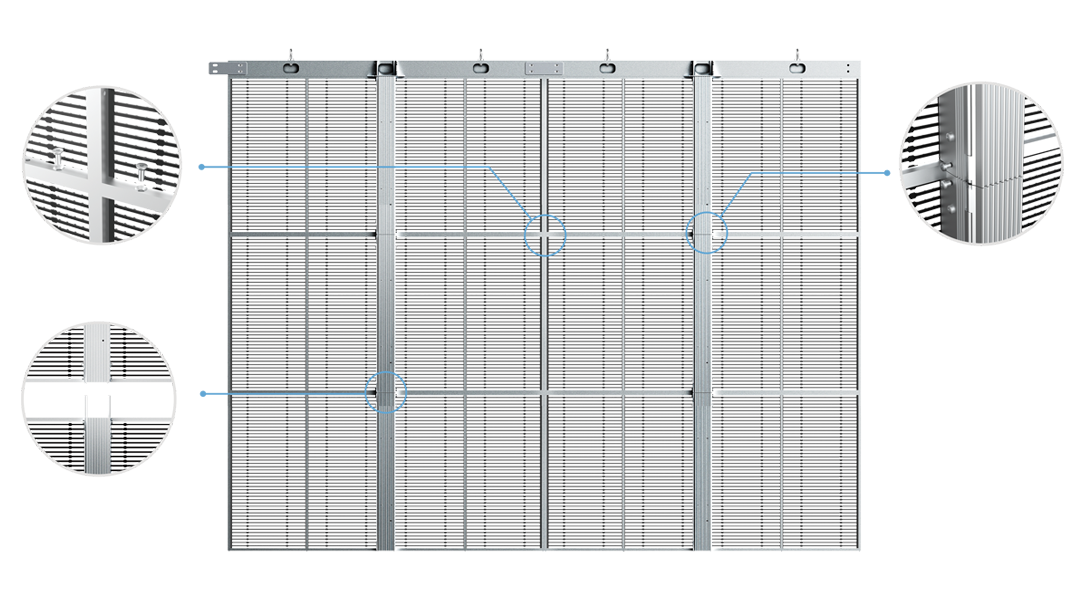

Cabinet Connection
( Up and Down, Right and Left

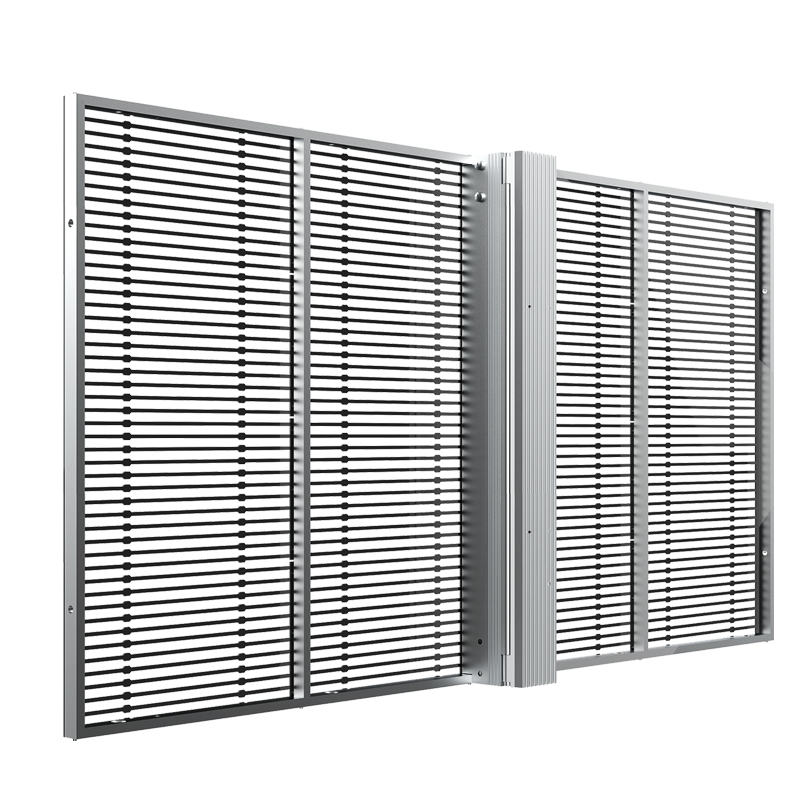

Transparent Mesh
The Ice series with a permeability of
50%--80% , it guarantees the original
lighting perspective function of the
glass curtain wall, and does not affect
the appearance and style of the building.
75 mm Max Thinkness
8Kg/Sqm Weight
Specifications
Indoor Fixed series
P3.9-7.8
P7.8-7.8
P10.4-10.4
P2.6-5.2
P3.29-6.25
P3.9-7.8
P7.8-7.8
P10.4-10.4
Part Number
Pixel Pitch
Brightness nit /m²
LED Configuration
Pixel Density
Transparency
Module Resolution
Cabinet Resolution
Scan
Viewing Distance
Refresh Rate
Max. Power Consumption
Module Size
Cabinet Size
Ave. Power Consumption
Cabinet Weight
Gray Scale
IP Rating
Viewing Angle (H/V)
Application
Driving IC
Control Mode
Cabinet Materials
Support Input
Signal Transmission
Operation Power
Working Temperature
Working Humidity
Operating Life
Certificate
P3.9-7.8
H3.9-V7.8(mm)
800-1000 nit
SMD2020
32768dot/m²
60%
128X16dot
256X64dot
16S
＞4m
≥3840Hz
400W/m²
500X125mm
1000X500mm
160W/m²
4kg/Panel
16bit
IP30
140°/140°
INDOOR
Optional
Synchronous display with control PC by DVI
Aluminium Profile AL 6063-T5
Composite,S-Vido, Component,VGA,DVI,HDMI,HD_SDI
CAT: 100m or Fiber Optic
AC110~ 159V/ AC160~ 240V, 50/60Hz
- 30°C~60°C
15%~90%
≥100,000hours
CE, ROHS, FCC
P7.8-7.8
H7.8-V7.8(mm)
1200 nit
SMD2020
16284dot/m²
60%
64X16 dot
128X64dot
4S
＞8m
≥3840Hz
800W/m²
500X125mm
1000X500mm
160W/m²
4kg/Panel
16bit
IP30
140°/140°
INDOOR
Optional
Synchronous display with control PC by DVI
Aluminium Profile AL 6063-T5
Composite,S-Vido, Component,VGA,DVI,HDMI,HD_SDI
CAT: 100m or Fiber Optic
AC110~ 159V/ AC160~ 240V, 50/60Hz
- 30°C~60°C
15%~90%
≥100,000hours
CE, ROHS, FCC
P10.4-10.4
H10.4-V10.4(mm)
1200 nit
SMD2020
9216dot/m²
68%
48X12dot
96X48dot
2S
＞10m
≥3840Hz
800W/m²
500X125mm
1000X500mm
160W/m²
4kg/Panel
16bit
IP30
140°/140°
INDOOR
Optional
Synchronous display with control PC by DVI
Aluminium Profile AL 6063-T5
Composite,S-Vido, Component,VGA,DVI,HDMI,HD_SDI
CAT: 100m or Fiber Optic
AC110~ 159V/ AC160~ 240V, 50/60Hz
- 30°C~60°C
15%~90%
≥100,000hours
CE, ROHS, FCC
P2.6-5.2
H2.6-V5.2(mm)
4500-5000nit
SMD1921
73728dot/m²
45%
192X24dot
384X96dot
12S
＞2m
≥3840Hz
800W/m²
500X125mm
1000X500mm
270W/m²
4kg/Panel
16bit
IP30
140°/140°
INDOOR
Optional
Synchronous display with control PC by DVI
Aluminium Profile AL 6063-T5
Composite,S-Vido, Component,VGA,DVI,HDMI,HD_SDI
CAT: 100m or Fiber Optic
AC110~ 159V/ AC160~ 240V, 50/60Hz
- 30°C~60°C
15%~90%
≥100,000hours
CE, ROHS, FCC
P3.29-6.25
H3.29-V6.25(mm)
5000-6000nit
SMD1921
48640dot/m²
50%
152X20dot
304X80dot
10S
＞3m
≥3840Hz
800W/m²
500X125mm
1000X500mm
270W/m²
4kg/Panel
16bit
IP30
140°/140°
INDOOR
Optional
Synchronous display with control PC by DVI
Aluminium Profile AL 6063-T5
Composite,S-Vido, Component,VGA,DVI,HDMI,HD_SDI
CAT: 100m or Fiber Optic
AC110~ 159V/ AC160~ 240V, 50/60Hz
- 30°C~60°C
15%~90%
≥100,000hours
CE, ROHS, FCC
P3.9-7.8
H3.9-V7.8(mm)
5000 nit
SMD1921
32256dot/m²
60%
126X16dot
252X64dot
7S
＞4m
≥3840Hz
800W/m²
500X125mm
1000X500mm
270W/m²
4kg/Panel
16bit
IP30
140°/140°
INDOOR
Optional
Synchronous display with control PC by DVI
Aluminium Profile AL 6063-T5
Composite,S-Vido, Component,VGA,DVI,HDMI,HD_SDI
CAT: 100m or Fiber Optic
AC110~ 159V/ AC160~ 240V, 50/60Hz
- 30°C~60°C
15%~90%
≥100,000hours
CE, ROHS, FCC
P7.8-7.8
H7.8-V7.8(mm)
5000 nit
SMD1921
16284dot/m²
60%
64 X16dot
128X64dot
4S
＞8m
≥3840Hz
800W/m²
500X125mm
1000X500mm
270W/m²
4kg/Panel
16bit
IP30
140°/140°
INDOOR
Optional
Synchronous display with control PC by DVI
Aluminium Profile AL 6063-T5
Composite,S-Vido, Component,VGA,DVI,HDMI,HD_SDI
CAT: 100m or Fiber Optic
AC110~ 159V/ AC160~ 240V, 50/60Hz
- 30°C~60°C
15%~90%
≥100,000hours
CE, ROHS, FCC
P10.4-10.4
H10.4-V10.4(mm)
5000 nit
SMD1921
9216dot/m²
68%
48X12dot
96X48dot
2S
＞10m
≥3840Hz
800W/m²
500X125mm
1000X500mm
270W/m²
4kg/Panel
16bit
IP30
140°/140°
INDOOR
Optional
Synchronous display with control PC by DVI
Aluminium Profile AL 6063-T5
Composite,S-Vido, Component,VGA,DVI,HDMI,HD_SDI
CAT: 100m or Fiber Optic
AC110~ 159V/ AC160~ 240V, 50/60Hz
- 30°C~60°C
15%~90%
≥100,000hours
CE, ROHS, FCC
