Holographic Series - Indoor Transparent - Transparent LED Screen - Products - Creative special-shaped led displays,Indoor&Outdoor flexible bend LED displays,Holographic invisible transparent screens Shinerave Electronic Co.,Ltd.

High Quality

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

High Quality

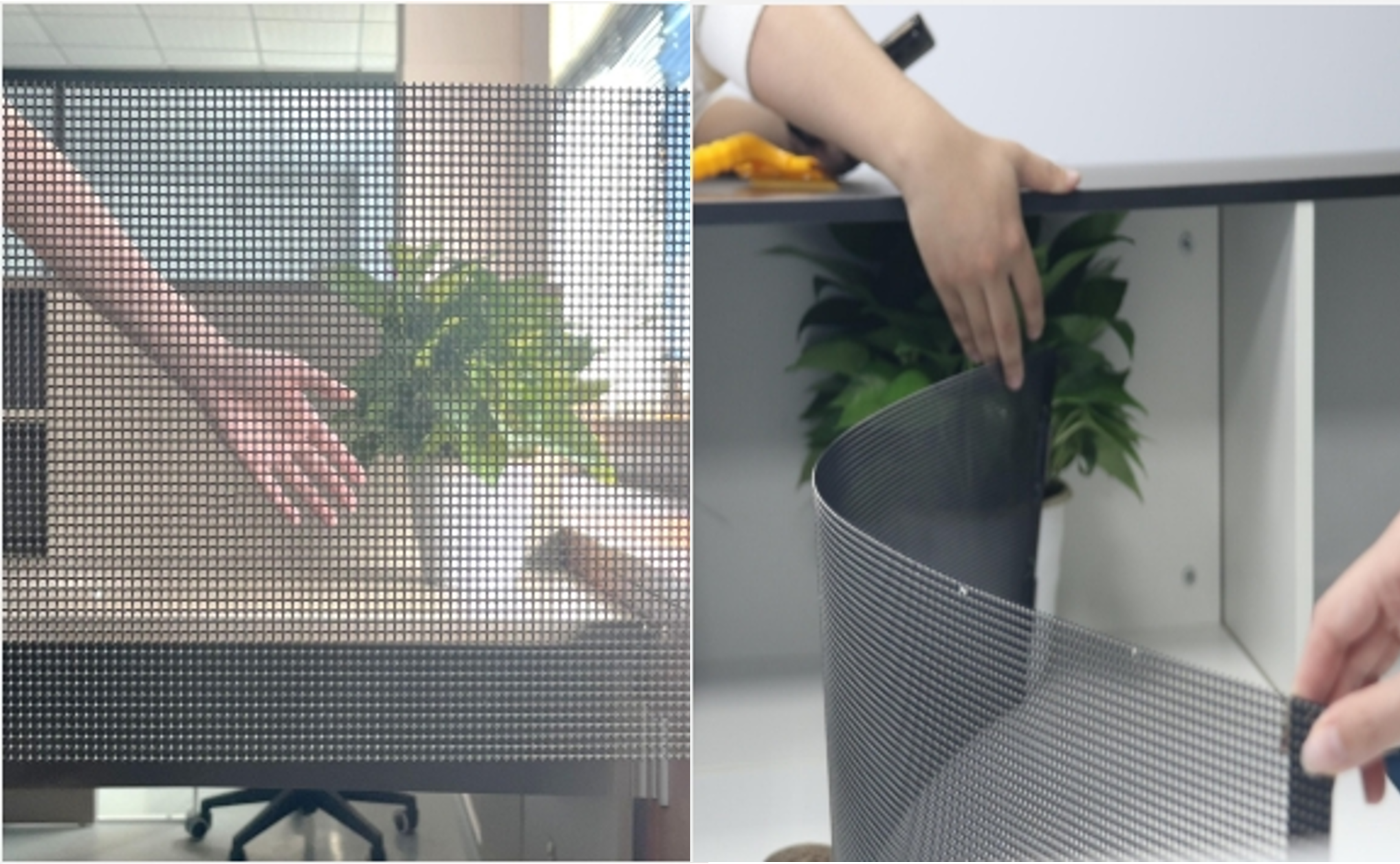

High light transmittance, light and bendable

•Transparent and invisible, frameless and skeletonless，with

a transparency rate of up to 90%

•Lightweight, thin, transparent, flexible and bendable

•Can be freely cut, matched with various styles

High light transmittance, light and bendable

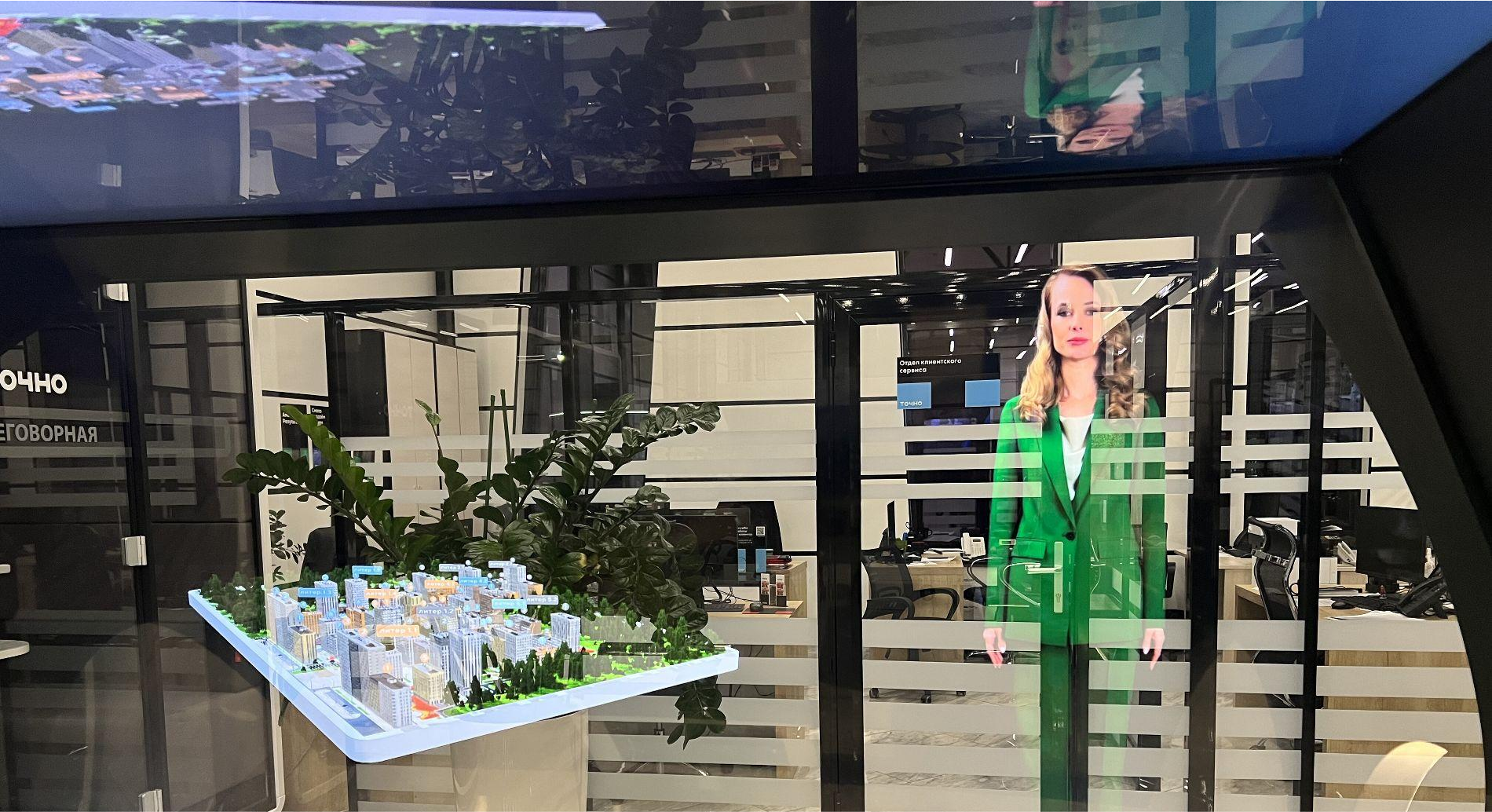

Easy to install

No need steel structure, just stick film slightly and connect the power signal

It can be used in shopping malls, exhibitions, and fields

such as medicine,architecture, or engineering to bring

a richer viewing experience to the audience

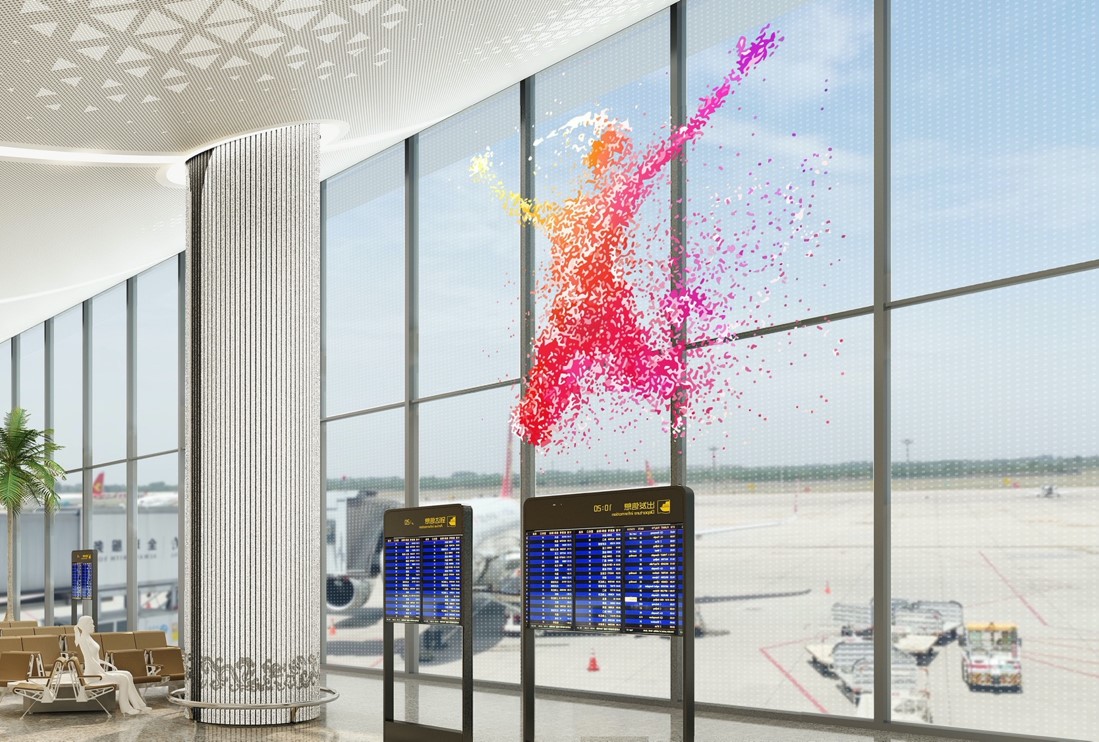

Three-dimensional realistic effect

•Floating images, 3D holographic display

•High contrast, high brightness, dazzling and eye-catching

•Static display with high-definition image quality, rich and delicate

colors, and enhanced texture

Specifications

Indoor Transparent series

P3.91-3.91

P6.25-6.25

Model
Pixel Pitch
Pixel Density
Visual Transparency Rate
Module Size
Overall Module Size
LED Type
Weight
Resolution
LED Control System
Brightness
Viewing Angle
Display Thickness
Resumable Transmission
Average Lifespan
Power Supply Requirement
Grayscale Level
White Field Color Temperature
Drive Mode
Brightness Decay Rate
Average Fault-Free Working Time
Operating Environment
Installation Method
Packaging
Power Consumption

Indoor P3.91-3.91
L(3.91mm)W(3.91mm)
65,536dots/sqm
＞90%/＞80%
1000mm*250mm/1025mm*250mm/ 1500mm*250mm
1000mm*250mm*50mm/1045mm*250mm*72mm/1520mm*250mm*72mm
1515（Integrated lamp driving)/2121（Integrated lamp driving)
0.94kg/1.04kg/ 1.21kg
256x64pix/376x64 pixels
Synchronous/Asynchronous
White balance brightness 2500cd/sqm; Automatically adjust according to environmental brightness and manual adjustment
Horizontal 160, Vertical 140
1.8mm
Supported
≥100,000 hours of use
110V ~ 220V±10%; AC50HZ, three-phase five-wire
≥16(bit)
5500K-15000K（adjustable）
Static
Below 0.05% in 2 years
≥10,000hours
◆Working Environment: 0～+60℃/20～85%RH，no condensation ◆Storage Environment: -20～+65℃/10～85%RH，no condensation
Wall Mount Installation, Glass Adhesive, Hanging, Stacking, suitable for curved
Cardboard Case/ Plywood Case / Flight Case
Average Power: 450W/㎡，Maximum Power Consumption: 1200W/㎡

Indoor P6.25-6.25
L(6.25mm)W(6.25mm)
25,600dots/sqm
＞80%/＞90%
1025mm*250mm/1200mm*250mm/1500mm*250mm
1045mm*250mm*72mm/1220mm*250mm*72mm/1520mm*250mm*72mm
2121（Integrated lamp driving)
1.07kg/1.11kg/1.21kg
160x40 pixels/188x40 pixels/232x40 pixels
Synchronous/Asynchronous
White balance brightness 5000cd/sqm; Automatically adjust according to environmental brightness and manual adjustment
Horizontal 160, Vertical 140
1.8mm
Supported
≥100,000 hours of use
110V ~ 220V±10%; AC50HZ, three-phase five-wire
≥16(bit)
5500K-15000K（adjustable）
Static
Below 0.05% in 2 years
≥10,000hours
◆Working Environment: 0～+60℃/20～85%RH，no condensation ◆Storage Environment: -20～+65℃/10～85%RH，no condensation
Wall Mount Installation, Glass Adhesive, Hanging, Stacking, suitable for curved installations, supports cutting to any size
Cardboard Case/ Plywood Case / Flight Case
Average Power: 450W/㎡， Maximum Power Consumption: 1200W/㎡
