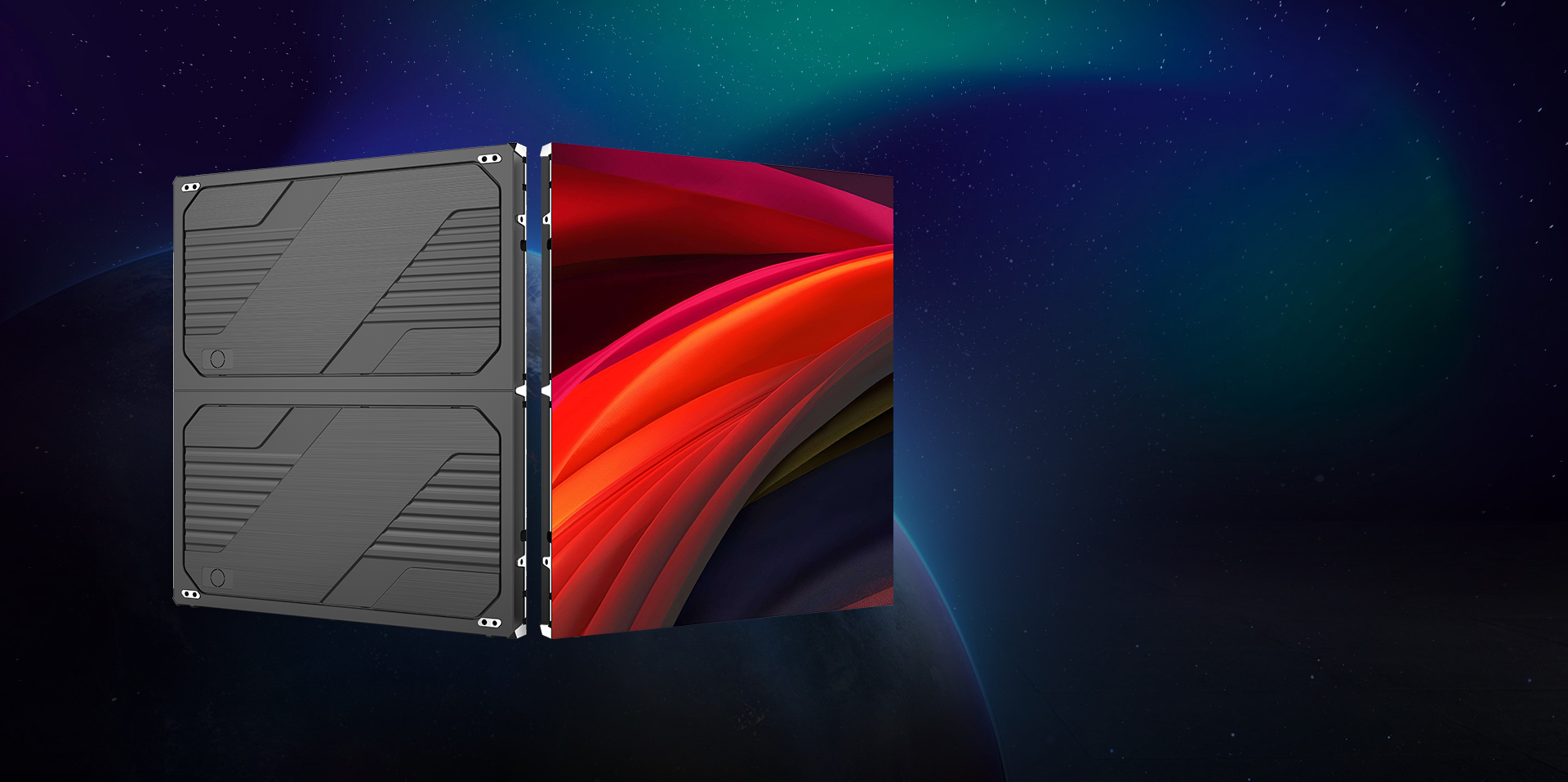

Indoor cob led display Q Series
Indoor cob led display Q Series
High Quality
Multiple Pixel Pitch Options
Front & Rear Maintenance
High Flatness
High Quality

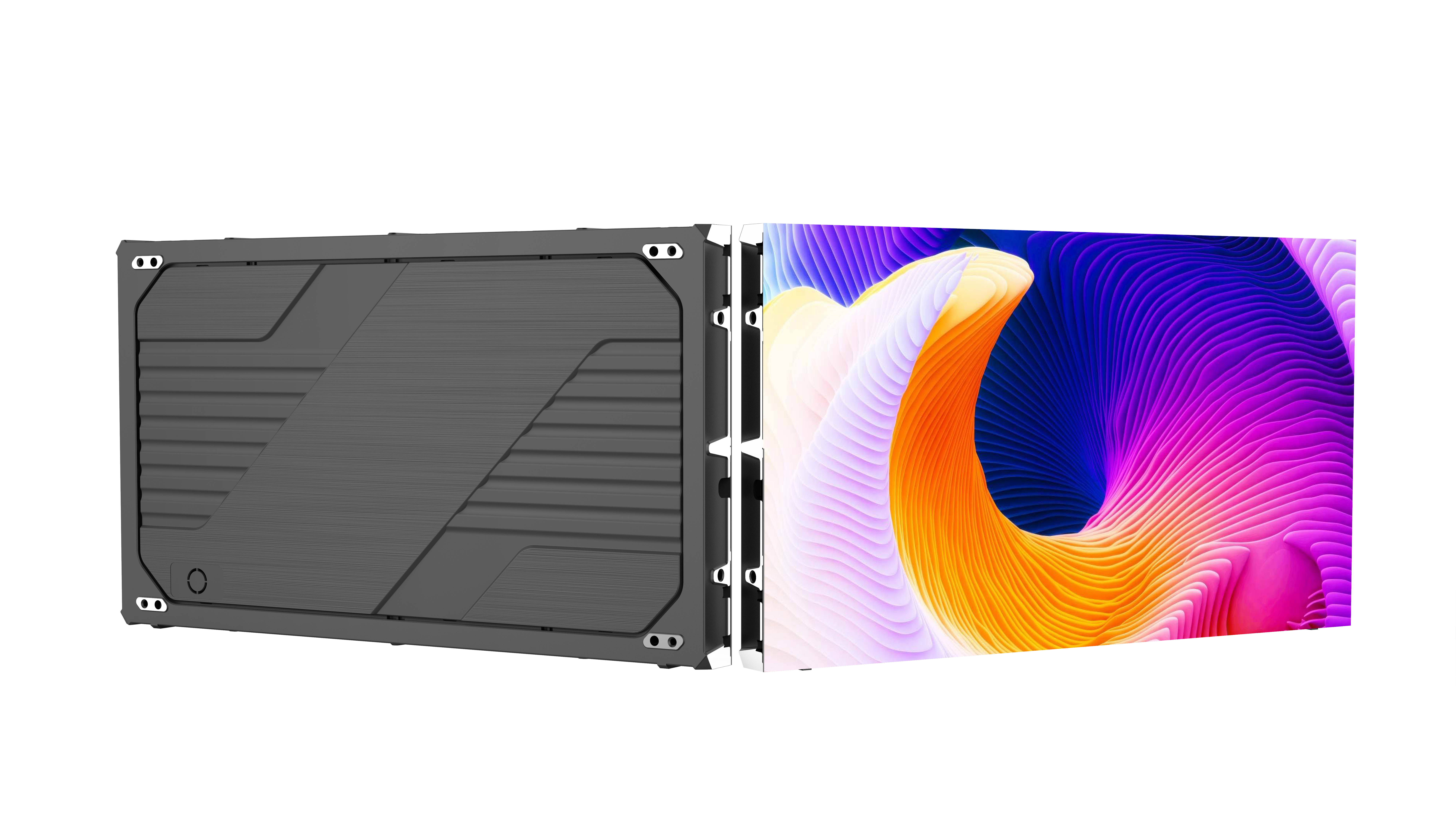

Features

Universal mounting holes  Enhanced HUB320


interface, support memory on module


Grayscale,Lower bits VS Higher bits


Features

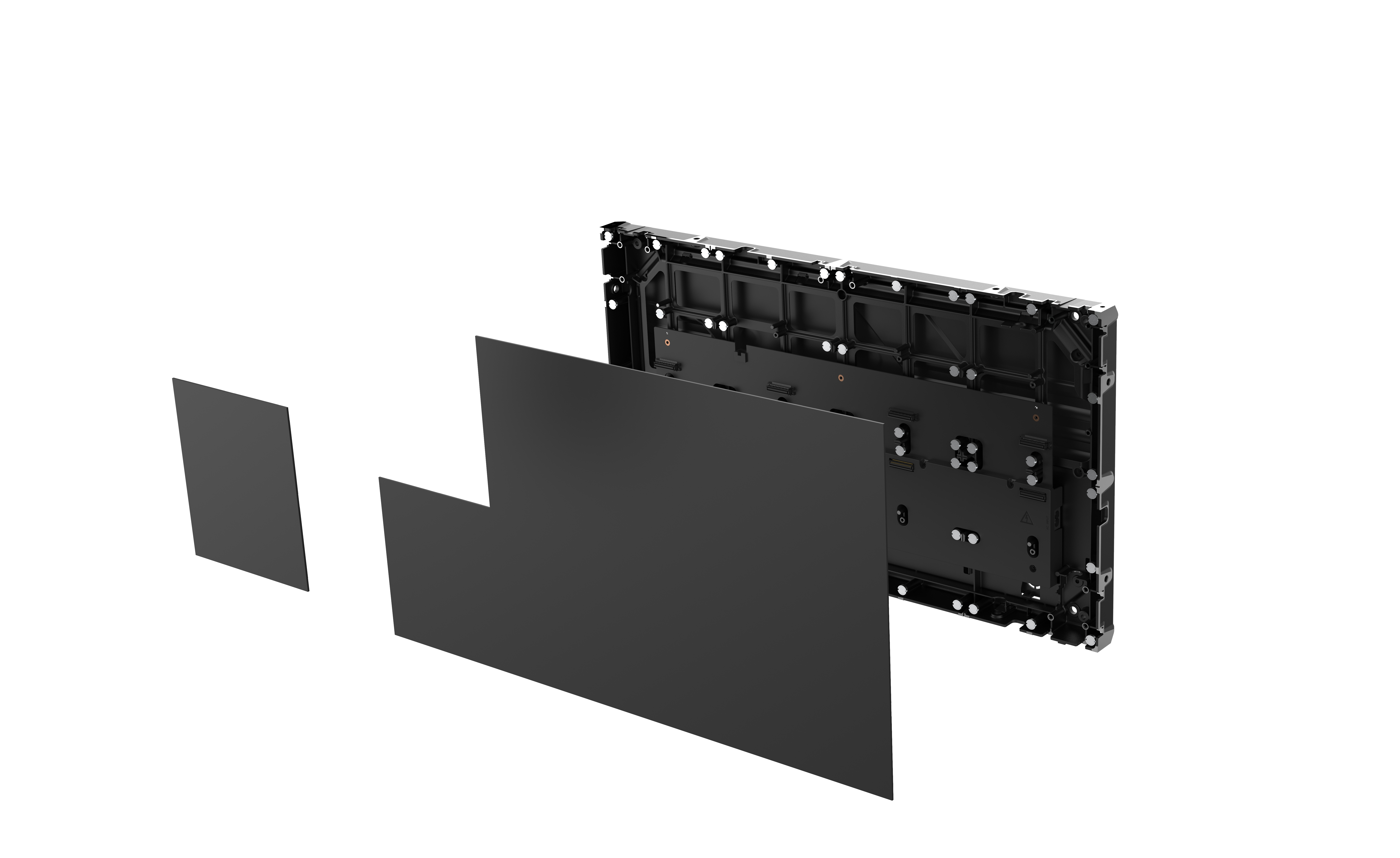

Precision-assemble

Available pixel pitches


Removable back cover for logo customization


Micron-level Tolerance, adjustable SplicingTriple Polishing (PCB, Cabinet, Plate )



Precision-assemble

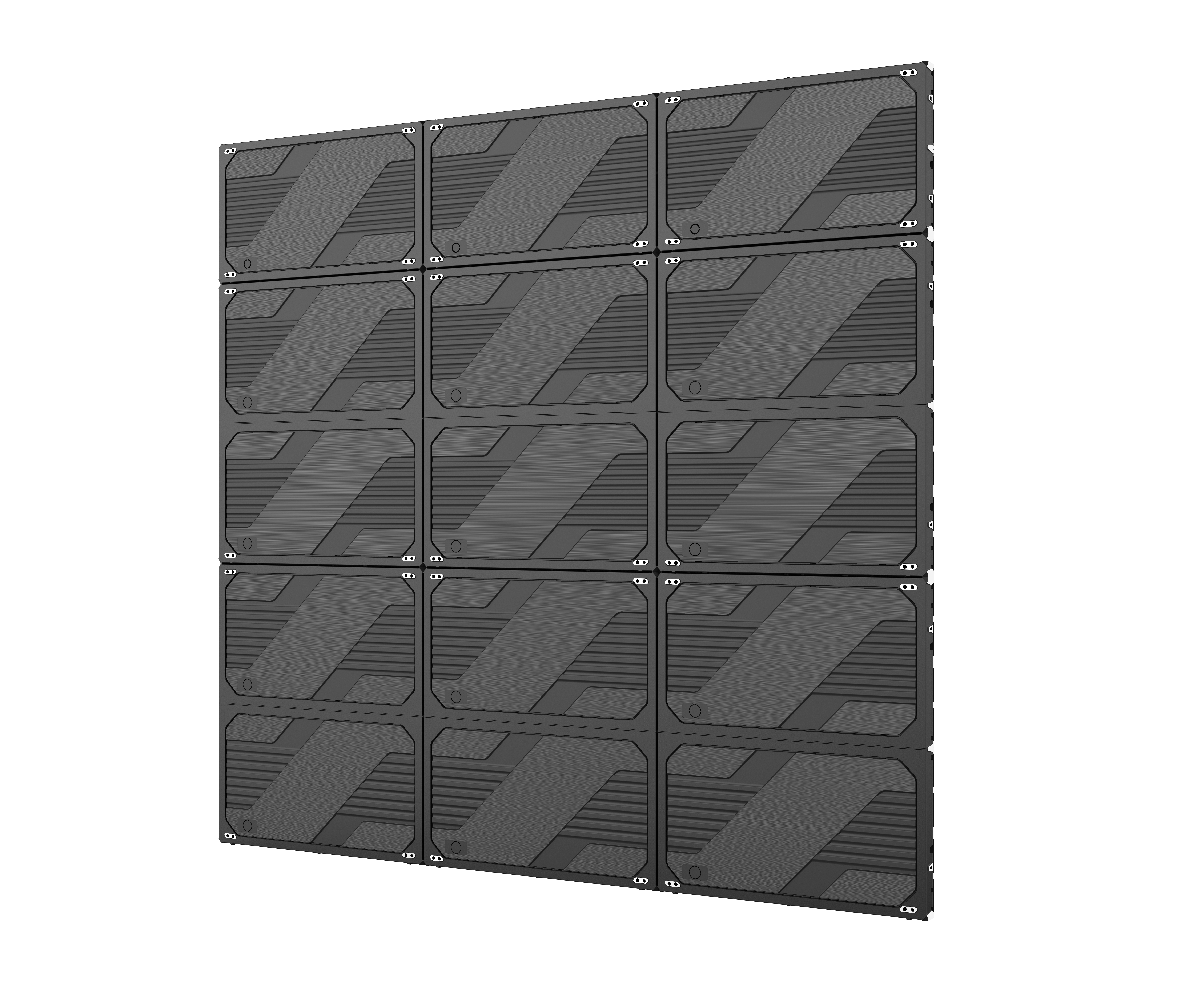

BLACK UNIFORMITY

No Batch Concern, No Sorting need


IP54 for front of the module | Panel Hardness 4H


Higher Contrast Ratio:Brighter highlights and deeper dark areas


HDR support: Immersive experience createdby the real and delicate details

BLACK UNIFORMITY
Specifications
Indoor Fixed series
P0.62
P0.78
P0.93
P1.25
P1.56
P1.87
  • Pixel Pitch
  • Module Size (mm)
  • Module Resolution
  • Surface
  • Cabinet Size (mm)
  • Cabinet Weight (kg)
  • Cabinet Resolution
  • Flash Memory
  • Brightness (nit)
  • Refresh Rate (Hz)
  • Contrast Ratio
  • Color Temp. (K)
  • View. Angle (°)
  • Input Voltage
  • Peak Power(W/ sqm)
  • 0.62
  • 150 * 168.75
  • 240 * 270
  • Matte Surface
  • 600 * 337.5 * 39.75
  • 4
  • 960 * 540
  • Supported
  • 600 (after calibration)
  • 3840
  • 10,000:1
  • 9300 (standard)
  • 160
  • AC, 100~240 V, 50/60 H
  • 450
  • 0.78
  • 150 * 168.75
  • 192 * 216
  • Matte Surface
  • 600 * 337.5 * 39.75
  • 4
  • 768 * 512
  • Supported
  • 600 (after calibration)
  • 3840
  • 10,000:1
  • 9300 (standard)
  • 160
  • AC, 100~240 V, 50/60 H
  • 420
  • 0.93
  • 150 * 168.75
  • 160 * 180
  • Matte Surface
  • 600 * 337.5 * 39.75
  • 4
  • 640 * 360
  • Supported
  • 600 (after calibration)
  • 3840
  • 10,000:1
  • 9300 (standard)
  • 160
  • AC, 100~240 V, 50/60 H
  • 375
  • 1.25
  • 150 * 168.75
  • 120 * 135
  • Matte Surface
  • 600 * 337.5 * 39.75
  • 4
  • 480 * 270
  • Supported
  • 600 (after calibration)
  • 3840
  • 10,000:1
  • 9300 (standard)
  • 160
  • AC, 100~240 V, 50/60 H
  • 350
  • 1.56
  • 150 * 168.75
  • 96 * 108
  • Matte Surface
  • 600 * 337.5 * 39.75
  • 4
  • 384 * 216
  • Supported
  • 600 (after calibration)
  • 3840
  • 10,000:1
  • 9300 (standard)
  • 160
  • AC, 100~240 V, 50/60 H
  • 350
  • 1.87
  • 150 * 168.75
  • 80 * 90
  • Matte Surface
  • 600 * 675 * 39.75
  • 7.9
  • 320 * 180
  • Supported
  • 550
  • 3840
  • 10,000:1
  • 9300 (standard)
  • 160
  • AC, 100~240 V, 50/60 H
  • 330
