Die Casting Aluminum

Multiple Pixel Pitch Options

Front & Rear Maintenance

High Flatness

Die Casting Aluminum

Hot: 100,000+ cabinets produced

Strong: faster and bigger Locks for wind resistance while hanging

Less price: most cost performance

High precision: flat and seamless

Usage: outdoor indoor both use

With 45 degree cut for corner

more stage event design

more creative

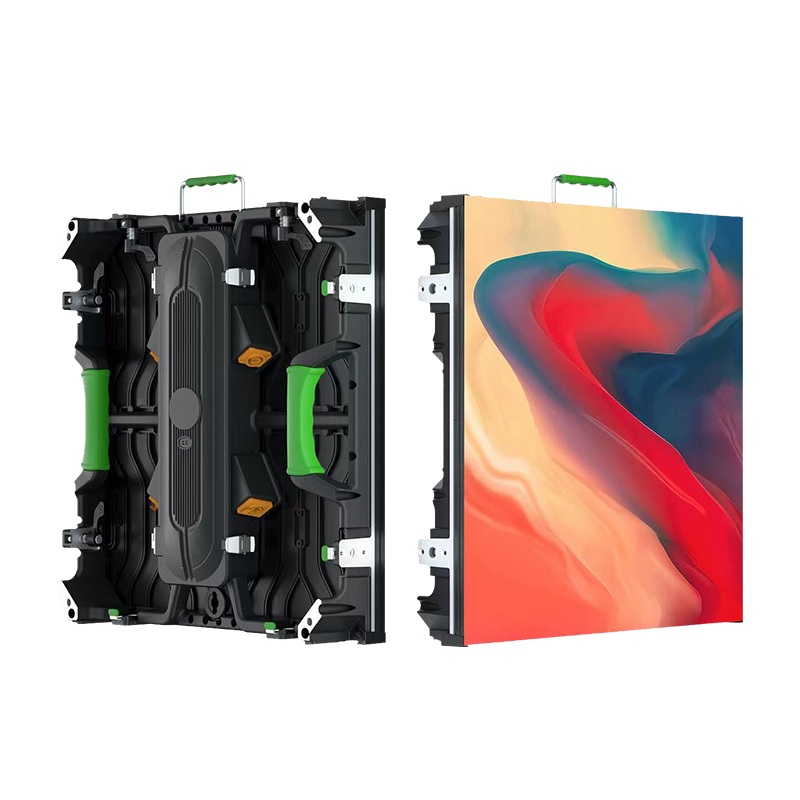

Structure Details

Front Back Maintenance

Modules and power receiving cards can

be removed from the front side

Perfect Cabinet Design With Magnetic Modules

Seperate Detachable Back Cover and Corner Protector

Extremely light weight and thin thickness

7.5Kg 500 x 500mm

14Kg 500 x 500mm

Extremely light weight and thin thickness

Specifications

Outdoor Rental series

Outdoor P2.604

Outdoor-P2.97

Outdoor-P3.91

Outdoor-P4.81

Product Number
Pixel pitch
LEDs
Size of Module
Resolution of Module
Size of Cabinet
Resolution of cabinet
Material of Cabinet
Weight of Cabinet
Brightness
Density
Best Viewing Angle
Pixel Configuration
Best Viewing Distance
Maximum Power Consumption
Average Power Consumption
Control Method
Gray Scale
Color Temperature
Contrast
Driving Device
Working Voltage
Working Temperature
MTBF
Frame Frequence
Refresh Frequence
IP Grade
Life Span
Data Transafer Method

Outdoor P2.604
2.6 mm
SMD1415
250mm×250mm
96*96
500mm*500mm*76mm
500*1000mm*76mm
192*192 / 192*384
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
4000cd/m²
147456 dots/㎡
160°/160°
1R1G1B
> 2.6 M
<700W/㎡
< 250W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60HZ
≥3840Hz
IP65
100,000 hours
RJ45

Outdoor-P2.97
2.97 mm
SMD1415
250mm×250mm
84×84
500mm*500mm*76mm
500*1000mm*76mm
168*168 / 168*336
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
5000cd/m²
112896 dots/㎡
160°/160°
1R1G1B
>2.9 M
<750W/㎡
<260W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60HZ
≥3840Hz
IP65
100,000 hours
RJ45

Outdoor-P3.91
3.91 mm
SMD1921
250mm×250mm
64×64
500mm*500mm*76mm
500*1000mm*76mm
128*128 / 128*256
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
5000cd/m²
65536 dots/㎡
160°/160°
1R1G1B
>3.9 M
<600W/㎡
<200W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60HZ
≥3840Hz
IP65
100,000 hours
RJ45

Outdoor-P4.81
4.81 mm
SMD1921
250mm×250mm
52×52
500mm*500mm*76mm
500*1000mm*76mm
104*104 / 104*208
Die-casting Aluminum
7.5 Kg/cabinet&
14Kg/cabinet
5000cd/m²
43264 dots/㎡
160°/160°
1R1G1B
>4.8 M
<750W/㎡
<260W/㎡
Asynchronization
14-16 bits
3000-10000k
≥4000：1
Constant current
AC100-240V/110V±10%
-20℃~+60℃
>10,000 hours
50-60HZ
≥3840Hz
IP65
100,000 hours
RJ45
